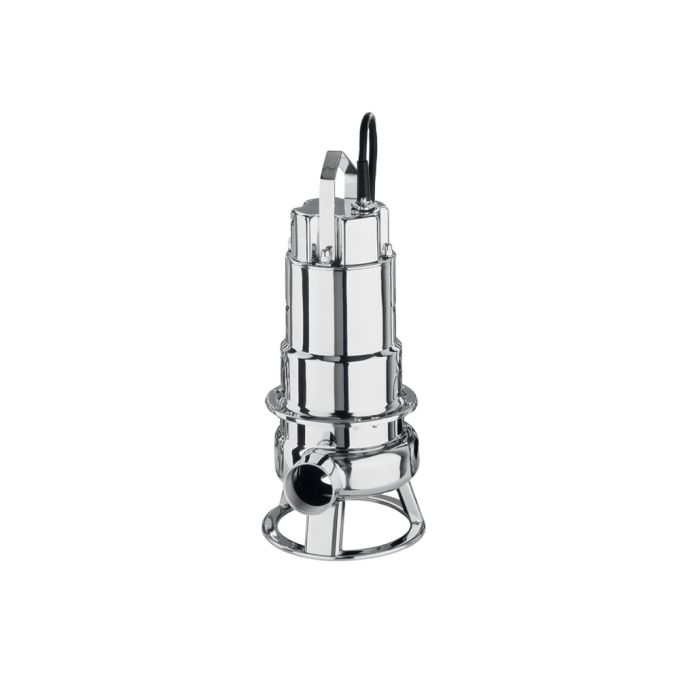

Ebara - DW VOX/A 300 Submersible Sewage Pump - Three Phase - Manual - 400V - Stainless Steel

Name: Ebara - DW VOX/A 300 Submersible Sewage Pump - Three Phase - Manual - 400V - Stainless Steel
Brand: Ebara
SKU: 1599090004A
Price: 1403.14 GBP
Availability: InStock

Part Number:

1599090004A

Ebara DW VOX is a stainless-steel submersible sewage/drainage pump family available with either a single-channel impeller (DW) or vortex impeller (DW VOX), for fixed and mobile installations (variant dependent).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,227.20 RRP £1,403.14 £1,169.28

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Ebara DW VOX is a stainless-steel submersible sewage/drainage pump family available with either a single-channel impeller (DW) or vortex impeller (DW VOX), for fixed and mobile installations (variant dependent).

Vortex variants are typically selected where improved solids passage and reduced clogging risk are desired (application dependent).

Typical applications

Drainage and wastewater lifting (duty dependent)
Dirty water and light sewage handling (application dependent)
Portable or fixed installation pumping stations

The Ebara - DW VOX/A 300 Submersible Sewage Pump - Three Phase - Manual - 400V is a AISI 304 Stainless Steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. The DW - DW VOX electric pump has two versions for connection to pipes:
Threaded for DW - DW VOX
Flanged for DWF - DW VOXF
For further technical information see the datasheet

Suitability:

Evacuation of civil and industrial wastewater
Drainage of wells or excavations
Drainage of underwater areas
General Handling of liquids, including those with solid and/or filamentary substances in suspension
Emptying of seepage liquid
Handling of dirty wastewater (sanitary services)
Emptying of cesspits

Real-world product applications

Handling liquids containing suspended solids
Supporting drainage in foul-water installations
Assisting with wastewater movement on sites and properties

Key Product Features

Flow Rate (Actual): 800 Ltr/min
Type of Impeller: Vortex Impeller
Voltage: 400V
Possibility to use in fixed and mobile installations

Product Range Technical Data:

Flow rate: up to 54 m³/h for DW
up to 48 m³/h for DW VOX
Total head: up to 20 m for DW
up to 15.7 m for DW VOX
Max. temperature of the liquid: +40°C
Poles: 2
Max. solids passage: 50 mm
Insulation class: F
Protection degree: IPX8
Voltage: Single-phase 1~230V ± 10%
Three-phase 3~400V ±10%
Max. immersion: 7 m with 10 m cable

Materials Spec:

Pump body: Stainless Steel AISI 304 (EN 1.4301)
Impeller: Stainless Steel AISI 304 (EN 1.4301)
Shaft: Stainless Steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal: upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£1,169.28
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Vortex Impeller
Electrical supply	400V
AC Power	Three Phase
Cable length	10m
Flow Rate	800 Ltr/min
Pump Operation	Manual (without float switch)
Water type	Sewage
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Pump Type Filter	Sewage Pump
Next Day Delivery	Yes
Connection Type	Threaded
Manufacturers Part Number	1599090004A

Data Sheet(s)
