Ebara - DW VOX/A M 150 SPINA UK Submersible Sewage Pump - Single Phase - Manual - 230V

Name: Ebara - DW VOX/A M 150 SPINA UK Submersible Sewage Pump - Single Phase - Manual - 230V
Brand: Ebara
SKU: 1599071621A
Price: 1143.07 GBP
Availability: InStock

Part Number:

1599071621A

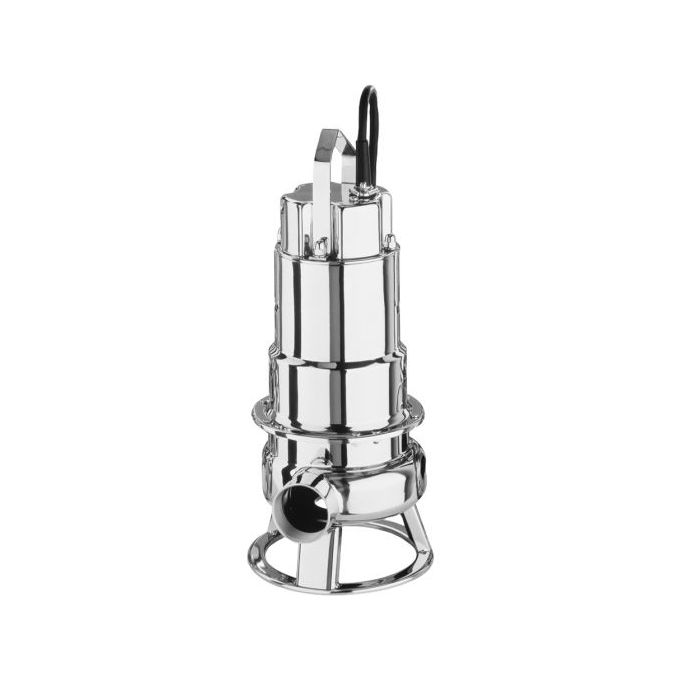

The Ebara - DW VOX/A M 150 SPINA UK Submersible Sewage Pump - Single Phase - Manual - 230V is a AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,814.40 RRP £1,143.07 £952.56

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Ebara - DW VOX/A M 150 SPINA UK Submersible Sewage Pump - Single Phase - Manual - 230V is a AISI 304 stainless steel submersible pump and single-channel impeller (DW) or vortex impeller (DW VOX) for fixed and mobile installations. The DW - DW VOX electric pump has two versions for connection to pipes:
Threaded for DW - DW VOX
Flanged for DWF - DW VOXF
For further technical information see the datasheet

Suitability:

Evacuation of civil and industrial wastewater
Drainage of wells or excavations
Drainage of underwater areas
General Handling of liquids, including those with solid and/or filamentary substances in suspension
Emptying of seepage liquid
Handling of dirty wastewater (sanitary services)
Emptying of cesspits

Real-world product applications

Handling liquids containing suspended solids
Supporting drainage in foul-water installations
Assisting with wastewater movement on sites and properties

Key Product Features

Flow Rate (Actual): 600 Ltr/min
Type of Impeller: Single
Voltage: 230V
Possibility to use in fixed and mobile installations

Product Range Technical Data:

Flow rate: up to 54 m³/h for DW
up to 48 m³/h for DW VOX
Total head: up to 20 m for DW
up to 15.7 m for DW VOX
Max. temperature of the liquid: +40°C
Poles: 2
Max. solids passage: 50 mm
Insulation class: F
Protection degree: IPX8
Voltage: Single-phase 1~230V ± 10%
Three-phase 3~400V ±10%
Max. immersion: 7 m with 10 m cable

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: Stainless steel AISI 304 (EN 1.4301)
Shaft: Stainless steel AISI 303 (EN 1.4305) (part in contact with liquid)
Mechanical seal: upper part in Carbon/Ceramic/NBR (motor side)
lower part in Silicon Carbide/NBR (pump side)

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£952.56
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Single
Impeller Stages	1
Electrical supply	230V
AC Power	Single Phase
Flow Rate	600 Ltr/min
Water type	Sewage
Pump Type Filter	Sewage Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Manufacturers Part Number	1599071621A
