Ebara - MULTIGO 40/12 - 230/50 Vertical Multistage Centrifugal Pump - Single Phase - 80 Ltr/min - 230V

Name: Ebara - MULTIGO 40/12 - 230/50 Vertical Multistage Centrifugal Pump - Single Phase - 80 Ltr/min - 230V
Brand: Ebara
SKU: 1564060009
Price: 643.36 GBP
Availability: InStock

Part Number:

1564060009

The Ebara - MULTIGO 40/12 - 230/50 Vertical Multistage Centrifugal Pump - Single Phase - 80 Ltr/min.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,021.20 RRP £643.36 £536.13

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

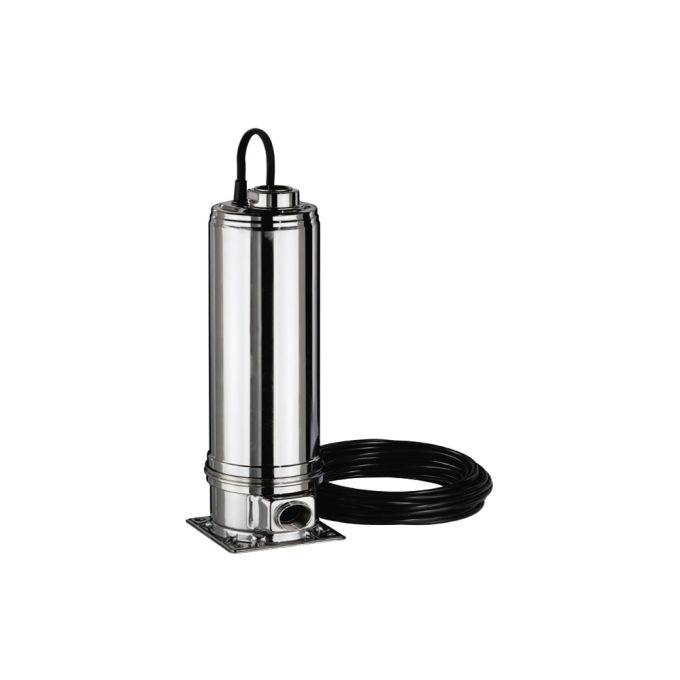

The Ebara - MULTIGO 40/12 - 230/50 Vertical Multistage Centrifugal Pump - Single Phase - 80 Ltr/min. - 230V is a Vertical multistage centrifugal pump in AISI 304 stainless steel, equipped with a motor cooled by the pumped liquid that makes it unique in terms of versatility of use, both in surface and submerged configuration, and of silence, reducing the vibrations caused by the hydraulic part.
The MULTIGO vertical multistage centrifugal electric pump has a double mechanical seal in the oil chamber to ensure continuous lubrication and maximum reliability.
The MULTIGO is offered also as in-line version.
For further technical information see the datasheet

Suitability:

Pressure boosting
Pressure boosting systems
Irrigation
Washing systems
Clean liquid harvesting

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Flow Rate (Actual): 80 Ltr/min
Type of Impeller: Vertical multistage
Voltage: 230V
Easy maintenance,
Practical and easy to use
Silent

Product Range Technical Data:

Flow rate: 1.2 to 7.2 m³/h
Total head: from 75.7 to 13.4 m
Max. working pressure: 10 Bar.
Max. temperature of the liquid: +40°C
Max. suction depth: 6 m with 5 m cable
MEI: > 0.4
Poles: 2
Insulation class: F
Protection degree: IP68
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Stainless steel AISI 304 (EN 1.4301)
Impeller: PPE+PS with glass fibres
Shaft: Stainless steel AISI 431 (EN 1.4057)
Mechanical seal: Ceramic/Carbon/NBR
Motor support: AISI 304

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£536.13
Manufacturer	Ebara
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	6
Electrical supply	230V
AC Power	Single Phase
Cable length	5m
Flow Rate	80 Ltr/min
Water type	Clean or Discoloured
Pump Type Filter	Submersible
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Connection Type	Threaded
Manufacturers Part Number	1564060009
