Ebara - PRA 0.50M Peripheral Pump - 230V

Name: Ebara - PRA 0.50M Peripheral Pump - 230V
Brand: Ebara
SKU: 1150050002E
Price: 213.19 GBP
Availability: InStock

Part Number:

1150050002E

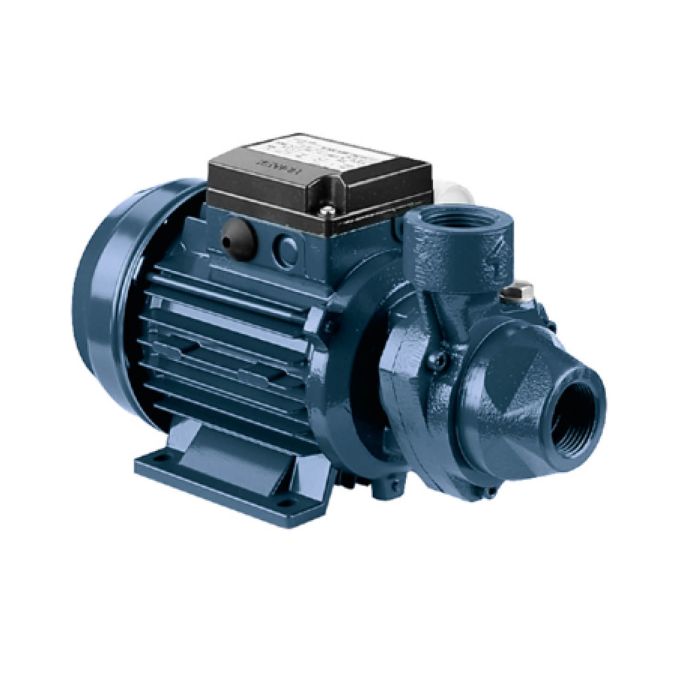

Ebara PRA is a compact peripheral pump range with cast-iron pump body and motor bracket, also available in nickel-plated versions (model dependent).

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£338.40 RRP £213.19 £177.66

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Ebara PRA is a compact peripheral pump range with cast-iron pump body and motor bracket, also available in nickel-plated versions (model dependent).

Peripheral (turbine) hydraulics are typically used where relatively higher head is needed at lower flows for domestic-type services (duty dependent).

Typical applications

Domestic boosting and small water supply duties (duty dependent)
Boiler feeding / support services (duty dependent)
Small booster units and general clean-water transfer

The Ebara - PRA 0.50 M Peripheral Pump - 230V is a PRA peripheral pump with Cast Iron body and support, also offered in the nickel-plated version (PRN 0.50 single-phase).
PRA-PRN electric pumps are practical, streamlined and easily transportable.
For further technical information see the datasheet

Suitability:

Domestic use
Boiler power supply
Autoclave units

Key Product Features

Flow Rate (Actual): 35 Ltr/min
Max Head: 40m
Voltage: 230V
Nickel-plated version available
Lightweight and easily transportable
Practical and easy to use
Silent

Product Range Technical Data:

Flow rate: from 0.3 to 4.2 m³/h
Total head: from 12 to 88 m
Max. working pressure: 6 bar. PRA/PRN 0.50
7.5 bar. PRA 0.80
12 bar. for the rest of the range
Max. temperature of the liquid: +80°C
Poles: 2
Insulation class: F
Protection degree: IP44
Voltage: Single-phase 1~230V ±10%
Three-phase 3~230/400V ±10%

Materials Spec:

Pump body: Cast Iron
Nickel-plated Cast Iron for PRN
Impeller: Brass
Shaft: AVZ for PRA 0.50
AISI 303 (EN 1.4305) for the rest of the range
Mechanical seal: Carbon/Ceramic/NBR (standard)
Motor support: Cast Iron

Ebara Pumps est. 1912, deliver highly engineered pumping technology trusted worldwide for water handling, pressure boosting, HVAC circulation, drainage and demanding industrial/commercial duties. Built around precision manufacturing and proven hydraulic design, Ebara's range spans stainless steel and cast-iron centrifugal pumps, multistage systems, submersible drainage and wastewater pumps, and complete booster solutions. The end result is dependable performance, efficient operation and long service life.

More Information
Price	£177.66
Manufacturer	Ebara
Warranty	1 year guarantee
Bars	6 bar
Electrical supply	230V
AC Power	Single Phase
Flow Rate	35 Ltr/min
Max Head	40m
Switch	None
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Peripheral Pump
Next Day Delivery	Yes
Manufacturers Part Number	1150050002E

Data Sheet(s)
