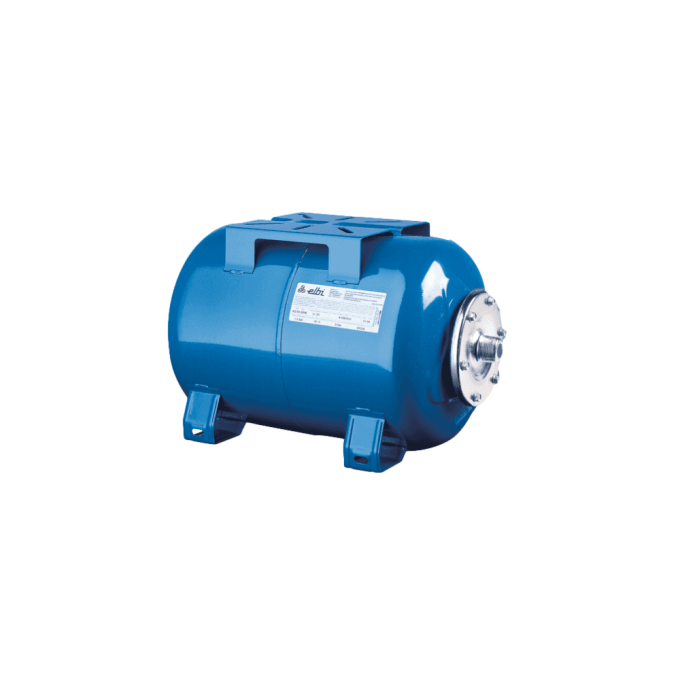

Elbi - AFH60 Ltr Horizontal Accumulator Pressure Vessel - 60 Ltr - 10 Bar.

Name: Elbi - AFH60 Ltr Horizontal Accumulator Pressure Vessel - 60 Ltr - 10 Bar.
Brand: Elbi
SKU: 022-556
Price: 222.36 GBP
Availability: InStock

Part Number:

022-556

The accumulator vessel is a device that fitted into a pressurised water system will provide system water at a pre-set sustained pressure.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£261.60 RRP £222.36 £185.30

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Elbi AFH60 Litre Horizontal Accumulator Pressure Vessel - 60 Ltr - 10 bar. is a Pressure Vessel item.

The accumulator vessel is a device that fitted into a pressurised water system will provide system water at a pre-set sustained pressure.

Its most common application is to supply systems in which the main supply pressure is too low and a pump is fitted to boost the pressure to an acceptable level.

As system demands take place the accumulator vessel will sustain system pressure by feeding additional water into the system at the required pressure.

This process will limit the number of times the pump needs to start (pump hunting) in order that system pressure remains at the optimal level.

The operating pressure of this is 10 bar.

Key Product Features

AFH60
60 Litre
Replaceable EPDM Membrane - Appropriate for potable water
c/w Mount
Main Connection 1"
Aux Connection ¾" (Remember to blank/valve the auxiliary connection!)
8 bar. Working
10 bar. Max
L 675mm x D 400mm x H480mm
12.5Kg
Water type: Clean Water

ELBI (est. 1975) is an Italian manufacturer of pressure vessels and expansion tanks for water and heating systems. Their product ranges support booster sets, potable water systems, HVAC circuits and solar applications where stable pressure control and system protection are required.

More Information
Price	£185.30
Manufacturer	Elbi
Warranty	1 year guarantee
Bars	10 bar
Capacity	60Ltr
Water type	Clean Water
Pump Type Filter	Pressure Vessel
Next Day Delivery	No
Manufacturers Part Number	022-556
