Elbi - AFV 200 Ltr Vertical Accumulator Pressure Vessel - 200 Ltr - 10 Bar. - OBSOLETE

Name: Elbi - AFV 200 Ltr Vertical Accumulator Pressure Vessel - 200 Ltr - 10 Bar. - OBSOLETE
Brand: Elbi
SKU: 022-590
Price: 592.62 GBP
Availability: OutOfStock

Part Number:

022-590

The accumulator vessel is a device that fitted into a pressurised water system will provide system water at a pre-set sustained pressure.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

Now Obsolete - See Replacement Below

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

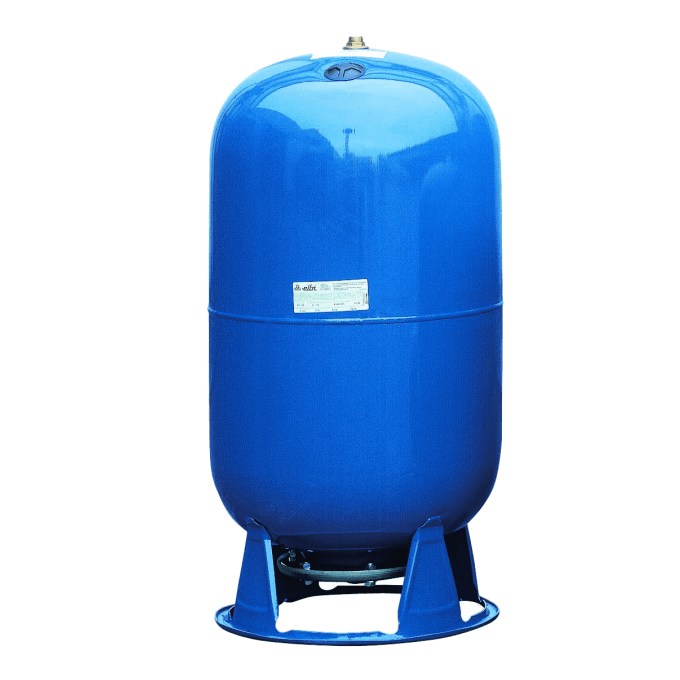

The Elbi AFV 200 Litre Vertical Accumulator Pressure Vessel - 200 Ltr - 10 bar. - Obsolete is a Pressure Vessel item.

The accumulator vessel is a device that fitted into a pressurised water system will provide system water at a pre-set sustained pressure.

Its most common application is to supply systems in which the main supply pressure is too low and a pump is fitted to boost the pressure to an acceptable level.

As system demands take place the accumulator vessel will sustain system pressure by feeding additional water into the system at the required pressure.

This process will limit the number of times the pump needs to start (pump hunting) in order that system pressure remains at the optimal level.

The operating pressure of this is 10 bar.

Key Product Features

AFV200 Vertical
200 Litre
Replaceable EPDM Membrane - Appropriate for potable water
No Mount
Main Connection 1¼"
Aux Connection ¾" (Remember to blank/valve the auxilary connection!)
8 bar. Working
10 bar. Max
D 600mm x H1065mm
48.3Kg
Water type: Clean Water

ELBI (est. 1975) is an Italian manufacturer of pressure vessels and expansion tanks for water and heating systems. Their product ranges support booster sets, potable water systems, HVAC circuits and solar applications where stable pressure control and system protection are required.

More Information
Price	£493.85
Manufacturer	Elbi
Warranty	1 year guarantee
Bars	10 bar
Capacity	200Ltr
Water type	Clean Water
Pump Type Filter	Pressure Vessel
Next Day Delivery	No
Manufacturers Part Number	022-590
