Flamco - 12 Ltr/min - Digifiller 1.0 Digital Filler Unit - Cold Fill - 2.5 Bar - OBSOLETE

Flamco - 12 Ltr/min - Digifiller 1.0 Digital Filler Unit - Cold Fill - 2.5 Bar - 45034

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

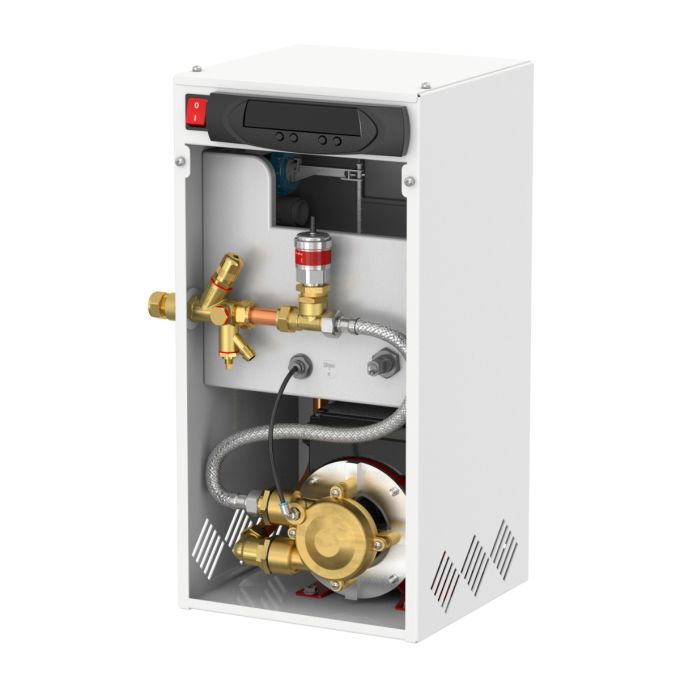

The Digifiller is a wall mounted, volumetric flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Self venting pumps and preset options to remove the need for conventional commissioning of the Pressurisation Unit. Ideal for Industrial, commercial or large domestic applications. available as an option preset to 0.5 bar, 1.0 bar, 1.5 bar or 2.0 bar topup (Delivery) pressure.

Applications:

• Commercial
• Industrial
• Residential

System Volume Guide:

• For system volumes up to 50,000 litres.
• Fluid protection Category 5 (AB Weir Overflow)
• Pre-fully commissioned and tested
• Pre-Set (Bar)
• Plug & Play, but easiy adjustable on site if required
• Self-bleed pump
• System fill mode
• Ons creen service reminder - 12 months
• Electric pump, 230V 50Hz 1ph
• Colour: White
• MODBUS RTU Communication Protocol
• Password Protected
• Sequential Programming Menu
• Pressure setting in 0.1 bar increments
• Pump pulse option
• Flood protection (Pump runtime limiter, Excessive start alarm)
• Event logging: alarm activations, pump run counter (activations per pump), cumulative run timer (hours per pump), Electrical interruption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), pressure sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).

Certifications and Standards Applied:

• PED 2014/68/EU Sound Engineering Practice.
• IEE - Electrical Safety Guidance.
• EMC 2004/108/EC.
• BS 7074 Parts 1 to 3.
• Machinery Directive 2006/42/EC.
• Electronic Components have been tested and comply with the EMC Directives.
• EN 61000-6-1: Generic Standards €“ Immunity standard for industrial environments.
• EN 61000-6-2: Generic Standards €“ Immunity standard for industrial environments.
• EN 61000-6-3: Generic Standards €“ Emission standard for residential, commercial and light industrial environment.
• CE marked components, where applicable.
• WRAS approved float valve to BS1212.
• IP54 (BS EN60529) rated controller.
