Flamco - Digifiller 2.0 Digital Filler Unit - Cold Fill - 2 Bar - OBSOLETE

Flamco - Digifiller 2.0 Digital Filler Unit - Cold Fill - 2 Bar - 45036

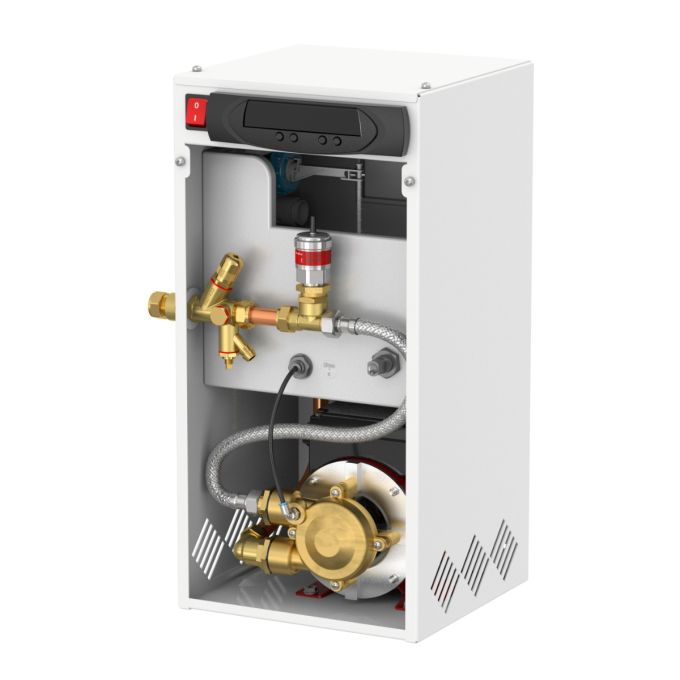

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.

The Digifiller is a wall mounted, volumetric flow rate (up to 12 l/min) top-up pressurisation unit with 4 litre internal break tank. Self venting pumps and preset options to remove the need for conventional commissioning of the Pressurisation Unit. Ideal for Industrial, commercial or large domestic applications. available as an option preset to 0.5 bar, 1.0 bar, 1.5 bar or 2.0 bar topup (Delivery) pressure.

Application:

• Commercial, Industrial and Residential

System Volume (Guide): < 50,000 litres.

Product incorporates:

• For system volumes up to 50,000 litres
• Fluid protection Categegory 5 (AB Weir Overflow)
• Pre-fully commissioned and tested
• Pre-set (bar)
• Plg & play, but easily adjustable on site if required.
• Self-bleed pump
• System fill mode
• Onscreen service reminder - 12 months
• Electric pump, 230V / 50Hz / 1 PH
• Colour: White (RAL 9003)
• MODBUS RTU Communication Protocol
• Password Protected
• Sequential programming menu
• Pressure setting in 0.1 bar increments
• Pump pulse option
• Flood protection (pump runtime limiter, excessive start alarm)
• Event logging: Alarm activations, pump run counter (Activations per pump), Cumulative run elapsed operating time (hours per pump), Electrical interruption
• Volt free contacts: Common alarm (N/C), high pressure alarm (N/O), Low pressure alarm (N/O), pressure sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O)
