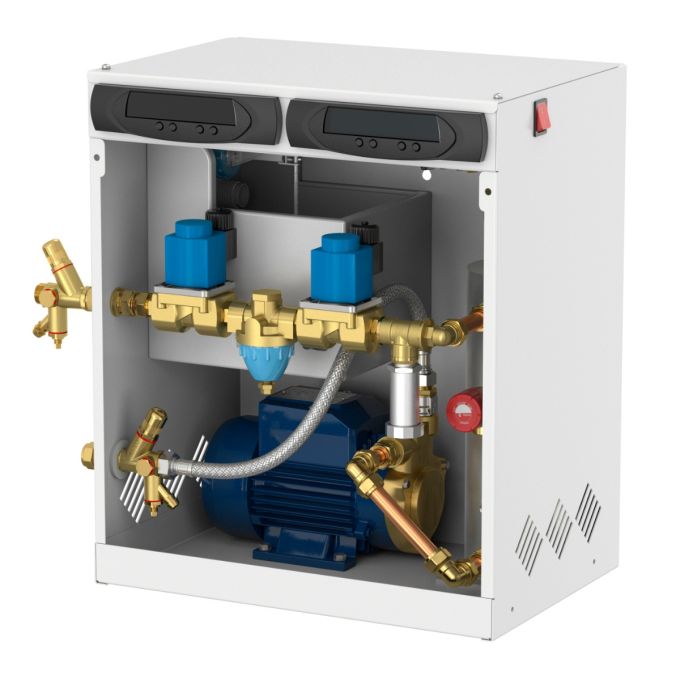

Flamco - Midfill Plus 150D Digital Pressurisation Unit - Wall Mounted - 6 Bar

Compact, totally enclosed combined digital pressurisation units. System fluid is sampled from the system, isolated and subjected to a full vacuum. All dissolved air within the sample is liberated in accordance with Henrys Law and vented to atmosphere. The deaerated fluid is then reintroduced to the system. This process is automatically repeated and controlled with a digital processor. A turbo mode is available for initial system setup to allow for rapid deaeration of new installations. The real-time display shows the status of the mechanical components.

The Flexfiller Plus and Midifill Plus are compact, totally enclosed combined digital pressurisation units wit h vacuum degasser for use on sealed systems in order to provide a minimum system pressure requirement and effective dissolved gas removal.

System Volume (Guide): < 300,000 litres (Midifill Plus 150D: < 50,000 litres).

Application:

• Commercial and Industrial

Product Features:

• For system volumes up to 300,000 litres (Midifill Plus 150D: < 50,000 litres).
• Available with single pump (Midifill Plus) or double pump (for duty/standby configuration).
• Fluid Protection Category 5 (AB Weir Overflow.
• Onscreen Service Reminder - 12 Months.
• Individual controllers for pressurisation and degassing function.
• Vacuum degassing, turbo and normal interval modes.
• Electric pump, 230V 50Hz 1ph (2160D: 415V 50Hz 3ph).
• Colour: Midifill Plus: White (RAL 9003), Flexfiller Plus: Black (RAL 9005).
• MODBUS RTU Communication Protocol.
• System fill mode.
• Password protected.
• Pressure setting in 0.1 bar. increments.
• Sequential programming menu.
• Pump pulse option.
• Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
• Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interruption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).

• Optional Additional Volt Free Contacts: Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Water type: Clean or Discoloured

Flamco (est. 1956) is a Dutch manufacturer of HVAC and plumbing system components, including expansion vessels, air separators and pressurisation accessories. Their ranges are used in heating and chilled-water circuits and potable water systems across domestic and commercial installations.
