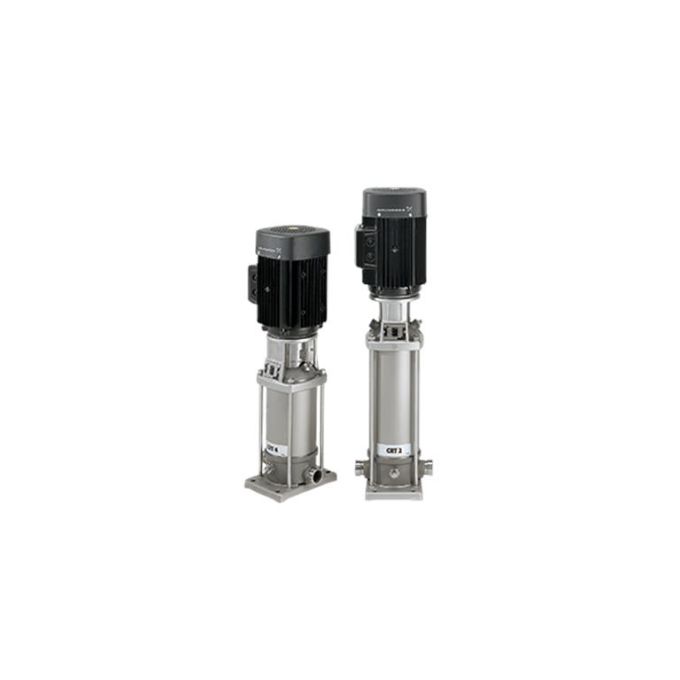

Grundfos - CRT 2-15 A-P-A-E-AUUE Vertical Multi-Stage Pump - 400V - Three Phase - 41.7 Ltr/min. - OBSOLETE

Name: Grundfos - CRT 2-15 A-P-A-E-AUUE Vertical Multi-Stage Pump - 400V - Three Phase - 41.7 Ltr/min. - OBSOLETE
Brand: Grundfos
SKU: 96100310
Price: 5655.72 GBP
Availability: OutOfStock

Part Number:

96100310

This unit delivers a maximum head of 139 m and runs at 400V. It is manufactured in Titanium.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

Now Obsolete - See Replacement Below

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Grundfos - CRT 2-15 A-P-A-E-AUUE Vertical Multi-Stage Pump - 400V - Three Phase - 41.7 Ltr/min. - 96100310

CRT 2-15 A-P-A-E-AUUE
Vertical, non-self-priming, multi-stage, in-line, centrifugal pump set for system installation in pipe systems and mounting on a foundation.

The pump has the following characteristics:

Impellers, intermediate chambers and outer sleeve are manufactured from Titanium.
Pump head cover and base are manufactured from Titanium.
The mechanical shaft seal has assembly length in compliance with EN 12756.
Power transmission is via ductile cast iron split coupling.
Pipework system installation connection is via PJE flanges/couplings.

The motor is a 3-phase AC motor.

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£4,713.10
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	15
Electrical supply	400V
AC Power	Three Phase
Flow Rate	41.7 Ltr/min
Max Head	139 m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	96100310
