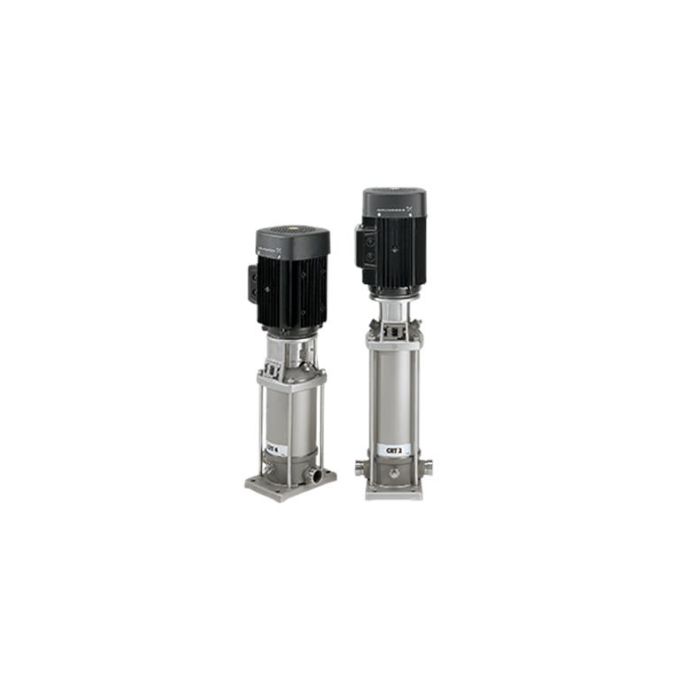

Grundfos - CRT 2-22 A-P-A-E-AUUE Vertical Multi-Stage Pump - 400V - Three Phase - 41 Ltr/min. - OBSOLETE

Name: Grundfos - CRT 2-22 A-P-A-E-AUUE Vertical Multi-Stage Pump - 400V - Three Phase - 41 Ltr/min. - OBSOLETE
Brand: Grundfos
SKU: 96100312
Price: 7091.28 GBP
Availability: OutOfStock

Part Number:

96100312

CRT 2-22 A-P-A-E-AUUE Vertical, non-self-priming, multi-stage, in-line, centrifugal pump unit for installation in pipe systems and mounting on a foundation.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

Now Obsolete - See Replacement Below

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

CRT 2-22 A-P-A-E-AUUE
Vertical, non-self-priming, multi-stage, in-line, centrifugal pump unit for installation in pipe systems and mounting on a foundation.

The pump has the following characteristics:

Pipework connection is via PJE flanges/couplings
Power transmission is via Cast Iron split coupling
The shaft seal has assembly length according to EN 12756
Pump head cover and base are made of Titanium
Impellers, intermediate chambers and outer sleeve are made of Titanium

The motor is a 3-phase AC motor.

Suitable for: Commercial heating, Commercial air conditioning, Commercial water pressure boosting, District heating, District cooling, Machining, Industrial cleaning process, Process liquids transfer, Industrial heating, Industrial cooling, Industrial water supply and transfer, Industrial wastewater treatment and reuse, Industrial process water treatment, Desalination, Reverse osmosis, Surface water intake, Drinking water treatment, Water distribution, Irrigation, Solar water solutions, Community water supply

Real-world product applications

Pressure boosting for water supply systems
Feeding distribution networks requiring higher pressure
Supporting irrigation and washdown water delivery
General clean-water transfer for utility systems
Supplying water to buildings and equipment

Key Product Features

Net weight: 38.4 kg
Mains frequency: 50 Hz
Approvals: CE,EAC,UKCA,SEPRO
Rated Head: 141 m
Max Head: 205 m
Rated Flow: 2.5 m³/h
Product Voltage: 3 x 220-240D/380-415Y V
Temperature Liquid Range: -20 .. 120 °C
Pumped Liquid: Water
Type of connection: PJE
Maximum Operating Pressure: 25 bar
Impeller Material: Titanium
Pump Housing Material: Titanium

This is a Grundfos Multistage pump built for high-pressure water supply applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£5,909.40
Manufacturer	Grundfos
Warranty	1 year guarantee
Impeller Type	Vertical multistage
Impeller Stages	22
Electrical supply	400V
AC Power	Three Phase
Flow Rate	41 Ltr/min
Max Head	22m
Water type	Clean or Discoloured
Pump Type Filter	Multistage
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	No
Manufacturers Part Number	96100312
