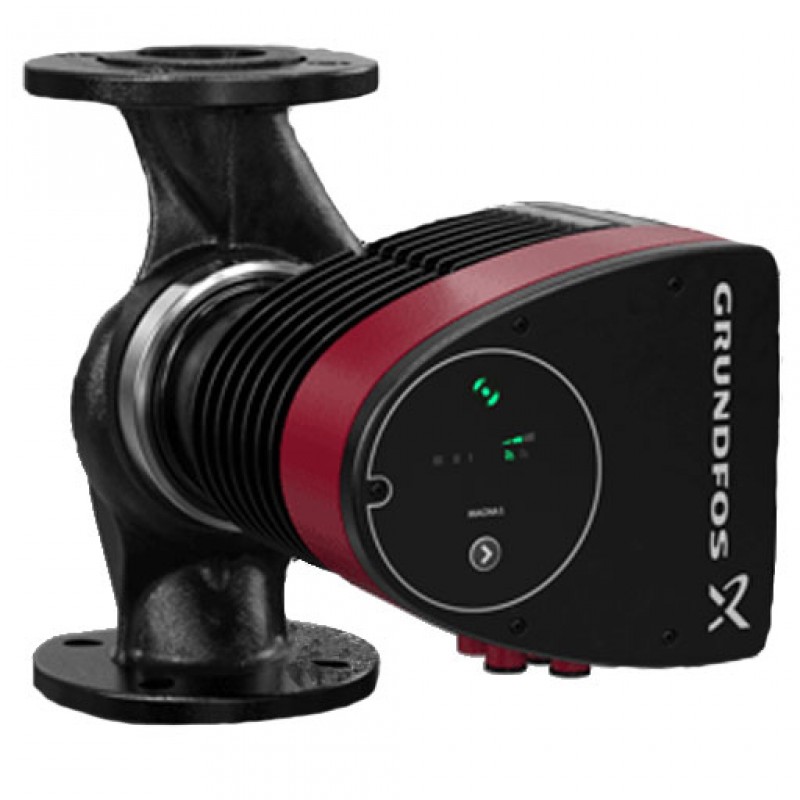

MAGNA1 32-120 F The Grundfos MAGNA1 is a circulator pump unit with permanent magnet motor and straightforward selection of pump setting. The MAGNA1 will fit both heating, cooling and domestic hot water circulation applications perfectly, making it the obvious choice for almost any building project – old or new.
Grundfos Magna1 32-120F (220) ERP/EUP ready variable-speed Circulator Pump.
The Grundfos Magna1 32-120F (220) is a variable-speed circulator which is used primarily for one and two-pipe heating systems.
The Grundfos Magna1 range are energy efficient variable-speed circulators which comply with ERP/EUP European legislation.
NOTE: THIS PUMP HAS FLANGED CONNECTIONS
MAGNA1 circulator pump with easy selection of pump settings.
The pump is a canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing.
The bearings are lubricated by the pumped liquid. A pump with no maintenance requirements and extremely low life cycle cost.
The pump has an intuitive user interface, which is especially fit for replacement of older circulators. The well-suited choice for basic performance needs in applications where system communication is not required.
Suitable for: Commercial heating, Commercial air conditioning, District heating, District cooling, Domestic heating, Industrial heating
Real-world product applications
- Boosting water pressure to multiple outlets in a building
- Maintaining stable pressure where demand varies
- Supplying water from storage tanks to distribution pipework
- Supporting general water supply and transfer systems
- Assisting with pressure control in utility installations
Key Product Features
- Net weight: 15.4 kg
- Mains frequency: 50 / 60 Hz
- Approvals: CE,VDE,EAC
- Max Head: 120 dm
- Product Voltage: 1 x 230 V
- Temperature Liquid Range: -10 .. 110 °C
- Pumped Liquid: Water
- Port to Port Length: 220 mm
- Connection Size: DN 32
- Type of connection: DIN
- Maximum Operating Pressure: 10 bar
- Impeller Material: PES 30%GF
- Pump Housing Material: Cast Iron
This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.
Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
This item is now obsolete. Please view our alternatives below.
