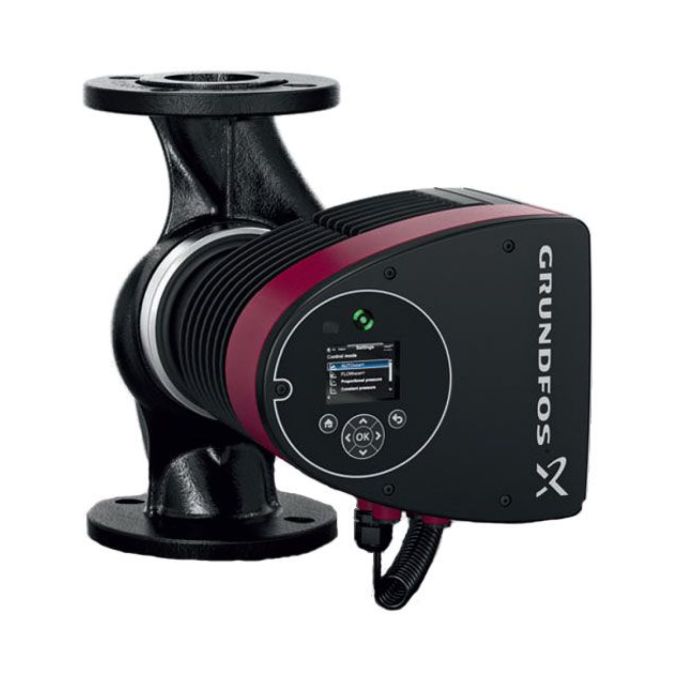

Grundfos - Magna3 50-40F Variable Speed Circulator Pump - 230V - Cast Iron

MAGNA3 50-40 F

The Grundfos MAGNA3 circulator pump is the well-suited choice for almost any building project – old or new. With its unrivalled energy efficiency, all-encompassing range and built-in communication capabilities, MAGNA3 is well-suited for engineers and specifiers looking to create high-performance heating and cooling systems. The pump is maintenance-free due to the canned-rotor type design. This also means that pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. MAGNA3 features an intuitive display and allows you to connect wirelessly with the Grundfos GO Remote app, giving you access to enhanced reporting and monitoring. MAGNA3 model E has Bluetooth, which allows you to connect directly to the Grundfos GO app on your smart phone without any need for a dongle. The pump includes fieldbus communication via CIM modules as well as analogue and digital inputs and configurable relays. Control features include AUTOADAPT and FLOWADAPT. FLOWADAPT reduces the need for throttling valves, thus cutting costs on system components. MAGNA3 is the superior choice for a wide range of heating and cooling applications, including:

small chiller applications ground-source heat pump systems air conditioning surfaces heating surfaces mixing loops

MAGNA3 is a single-phase pump characterised by the controller and control display being integrated in the control box. The pump also has a built-in differential pressure and temperature sensor. The pump housing is available in both cast-iron and stainless-steel versions. The composite rotor can is carbon-fibre reinforced, the bearing plate and rotor cladding are made of Stainless Steel and the stator housing is made of aluminium. The power electronics are air-cooled. MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter.

Suitable for: Commercial heating

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Net weight: 17.5 kg
• Mains frequency: 50 / 60 Hz
• Approvals: CE,VDE,EAC,MOROCCO,UKCA,TSE,RCM,UkrSEPRO
• Rated Head: 2.566 m
• Max Head: 40 dm
• Rated Flow: 12 m³/h
• Product Voltage: 1 x 230 V
• Temperature Liquid Range: -10 .. 110 °C
• Pumped Liquid: Water
• Port to Port Length: 240 mm
• Connection Size: DN 50
• Type of connection: DIN
• Maximum Operating Pressure: 10 bar
• Impeller Material: Composite
• Pump Housing Material: Cast Iron

This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
