Grundfos - Max-E Boost 5.0 Bar. Pressure Booster Pump Set - 240V

Grundfos - Max-E Boost 5.0 Bar. Pressure Booster Pump Set - 240V - GR-98536448

Incorporates

• Packaged booster set with integral controls
• Variable speed operation for constant system pressure
• Factory fully commissioned and tested to 3 bar, capacity 1.9 l/s
• WRAS approved pump and pressure vessel
• Supplied with anti vibration mountings
• Supplied with low level float switch
• For single phase 240V electrical supply
• Alarm contact
• Compact dimensions
• Low noise
• 60KG
• Max Head 46m
• Dimentions = 735mm long, 726mm deep, 400mm wide
• 1phase 240v
• Max flow 2.4l/sec

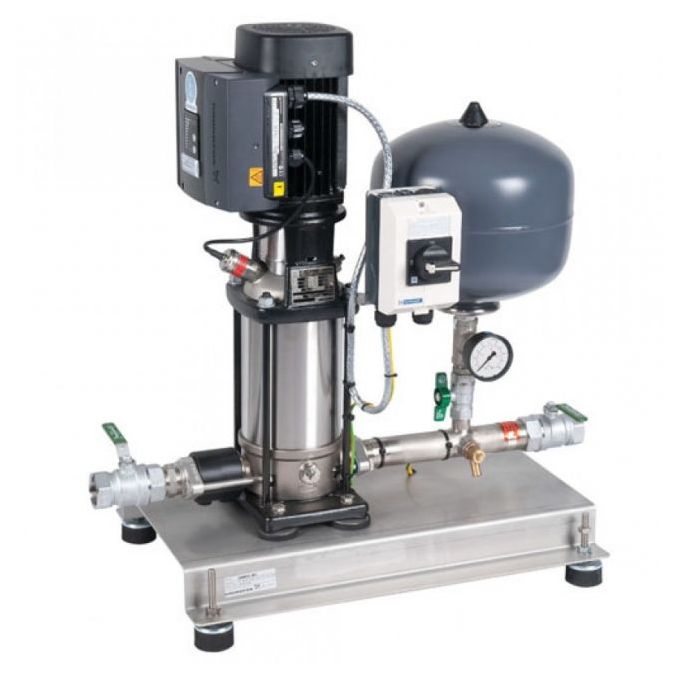

The Grundfos Max-E Boost is a single pump packaged cold water booster set, designed as a compact and cost effective solution for pressure boosting in large domestic properties with two or more bathrooms.

The Max-E Boost uses the latest variable speed pump motor technology, to maintain a constant discharge pressure up to a maximum setting of 4.5 bar (factory setting 3 bar). The speed controlled operation of the Grundfos CRIE 5-5 helps eliminate pipe work noise caused by hydraulic shock (water hammer), normally associated with standard on/off controlled pumps The pump is quiet in operation and its compact size make it designed and rated for system installation in a utility room or garage, or a frost protected outdoor enclosure.

With WRAS approved parts the CRIE 5-5 grade 304 stainless steel vertical multi-stage pump is factory fully commissioned and tested to deliver a constant 3 bar pressure at flow rates up to 2.3 l/s.

The Max-E Boost can be connected to any standard Water Byelaw approved cold water storage tank having an AB Air Gap of adequate capacity to suit the water consumption of the system installation.

The pump motor control panel indicates operation and system fault condition conditions, and allows simple adjustment of the discharge pressure from 0.5bar to a maximum of 4.5 bar.

The Max-E Boost is intended to supply boosted cold water from a water storage tank to a pressurised hot and cold water system at a constant discharge pressure.
