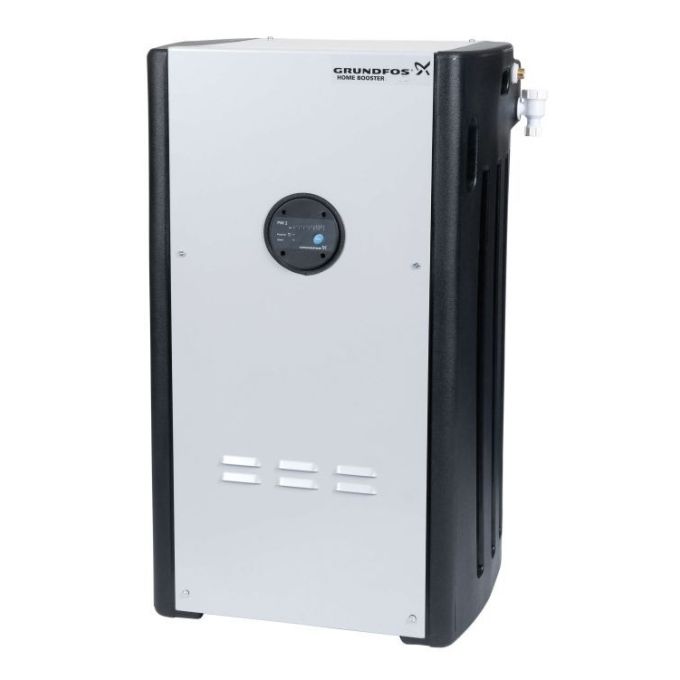

Grundfos - Home Booster Packaged Pumping System - 230V - 4.5 Bar. Version

Name: Grundfos - Home Booster Packaged Pumping System - 230V - 4.5 Bar. Version
Brand: Grundfos
SKU: GR-MD450200
Price: 2353.2 GBP
Availability: InStock

Part Number:

GR-MD450200

The Grundfos - Home Booster Packaged Pumping System - 230V - 4.5 Bar. Version is a pump designed to move water or liquid through the system for its intended application.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£4,437.60 RRP £2,353.20 £1,961.00

In stock

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

The Grundfos - Home Booster Packaged Pumping System - 230V - 4.5 Bar. Version is a pump designed to move water or liquid through the system for its intended application.

With 230V supply and pressure duties up to 4.5 Bar, it is built to support dependable performance and efficient day-to-day operation.

The Home Booster unit incorporates an integrated 200 litre storage tank, providing a usable capacity of 180 litres and complete with a Type AB air gap in full compliance with Water Byelaws regulations. This design ensures secure separation from the mains supply while maintaining a reliable and protected water reserve.

A high-grade Stainless Steel pump is fitted as standard, delivering efficient performance, consistent pressure, extended service life and low-noise operation. For properties with increased demand, or where incoming mains pressure results in slow tank replenishment, an additional 180 litre slave storage tank can be specified to expand overall capacity and improve system resilience.

Supplied with a 2 Year Warranty.

This unit runs at 230V.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£1,961.00
Manufacturer	Grundfos
Warranty	2 years guarantee
Dimensions	H1000 x W600 x D535
Bars	4 bar
Electrical supply	230V
AC Power	Single Phase
Capacity	200Ltr
Cable length	5m
Flow Rate	72 Ltr/min
Pump Operation	Automatic (with float switch)
Water type	Clean Water
Switch	Pressure Switch
Duty Type	Domestic
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Booster Set
Next Day Delivery	Yes
Connection Size	1/2 inch
Manufacturers Part Number	MD450200

Data Sheet(s)
