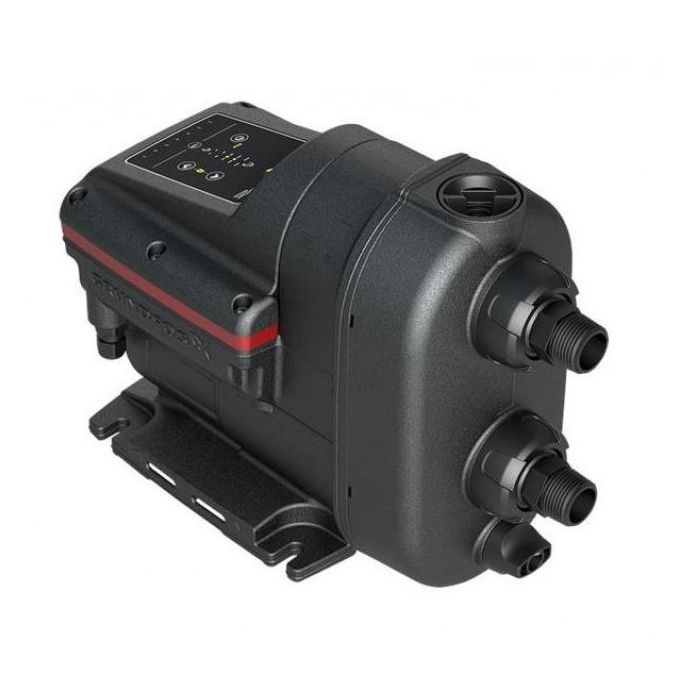

Grundfos - Scala2 3-45 Domestic Home Booster Pump Set - Variable Speed

Grundfos SCALA2 is fully integrated, self-priming, space-efficient waterworks for pressure boosting in domestic applications. SCALA2 incorporates integrated speed control, enabling perfect pressure at the taps, meaning that the pump performance automatically adjusts according to demand.

SCALA2 can be installed in three straightforward steps:

1. Connect the pipes.

2. Prime the pump.

3. Plug the pump into the power outlet, and the pump starts.

Grundfos SCALA2 has all the components necessary to ensure comfortable pressure:

SCALA2 features self-priming, which enables the pump to extract water from a level below the pump. Once adequately primed, the pump is capable of effortlessly lifting water from depths down to 8 metres in less than 5 minutes. The pump moreover guarantees dependable water supply in situations where there is a risk of dry running and leakages in the inlet hose or pipes, thereby enhancing the overall reliability of the system.

In the event of dry running, water shortage, extreme temperatures or if the pump becomes blocked due to seizure or overload, the pump automatically shuts down, preventing damage or motor burnout.

The pump features an self-operating reset function. In case of dry running or similar alarm, the pump stops. The pump attempts to restart every five minutes for a total of eight times. After the eighth attempt, a new restart attempt occurs every 24 hours. The self-operating reset function can be deactivated. Thanks to its hydraulic design, permanent-magnet motor and water cooling, the pump is extremely low-noise, 44 dB(A) in typical use, which makes it appropriate for indoor as well as outdoor use. Maximum noise level at full load is 53 dB(A).

The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, thereby prolonging the lifetime of the pump.

Suitable for: Domestic ground water intake, Domestic rainwater harvesting, Domestic water pressure boosting

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations

Key Product Features

• Net weight: 9.58 kg
• Mains frequency: 50 / 60 Hz
• Approvals: CE,VDE,UKCA
• Rated Head: 27 m
• Max Head: 45 m
• Rated Flow: 3 m³/h
• Product Voltage: 1 x 200-240 V
• Temperature Liquid Range: 0 .. 45 °C
• Pumped Liquid: Water
• Maximum Operating Pressure: 10 bar
• Impeller Material: Composite
• Pump Housing Material: Composite

This is a Grundfos product used in reliable, professional pump and fluid handling applications.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
