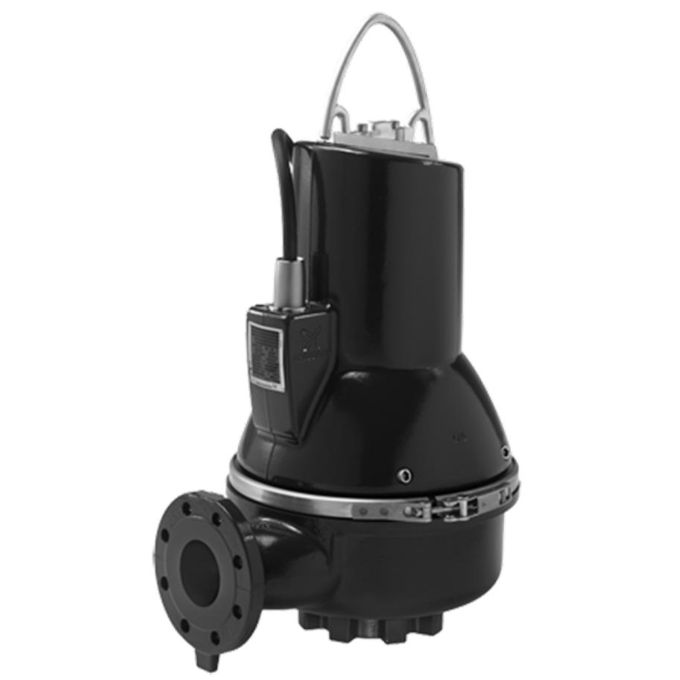

Grundfos - SLV.65.65.11.2.1.50B Vortex Sewage Pump - 3 Phase - Non ATEX - Cast Iron

Grundfos - SLV.65.65.11.2.1.50B Vortex Sewage Pump - 3 Phase - Non ATEX - Cast Iron - 96106577

SLV.65.65.11.2.50B

Non-self-priming, single-stage, centrifugal pump set designed for handling wastewater, process water and unscreened raw sewage. The pump is designed for intermittent and continuous operations in submerged system installation. The efficient SuperVortex hydraulic impeller provides passage of long fibres and solids up to 2 9/16 in and is designed and rated for wastewater with a dry matter content of up to 5 %. A unique stainless-steel clamp assembling system enables quick and easy disassembly of the pump from the motor unit for service and inspection. No special tools are required. pipework system installation connection is via a DIN flange.

Real-world product applications

• Handling liquids containing suspended solids
• Supporting drainage in foul-water installations
• Assisting with wastewater movement on sites and properties

Key Product Features

• Net weight: 46.5 kg
• Mains frequency: 50 Hz
• Approvals: EN 12050-1
• Rated Head: 5.1 m
• Max Head: 9.5 m
• Rated Flow: 4.91 l/s
• Product Voltage: 3 x 400-415 V
• Temperature Liquid Range: 0 .. 40 °C
• Maximum Operating Pressure: 6 bar
• Impeller Material: Cast Iron
• Pump Housing Material: Cast Iron

This is a Grundfos Submersible pump suitable for installation below liquid level.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.
