Grundfos - TP 65-120/2 1.1kw 2900RPM BQQE Single Head Pump - 415V - 1.1kW

Name: Grundfos - TP 65-120/2 1.1kw 2900RPM BQQE Single Head Pump - 415V - 1.1kW
Brand: Grundfos
SKU: GR-98585759
Price: 2101.32 GBP
Availability: InStock

Part Number:

GR-98585759

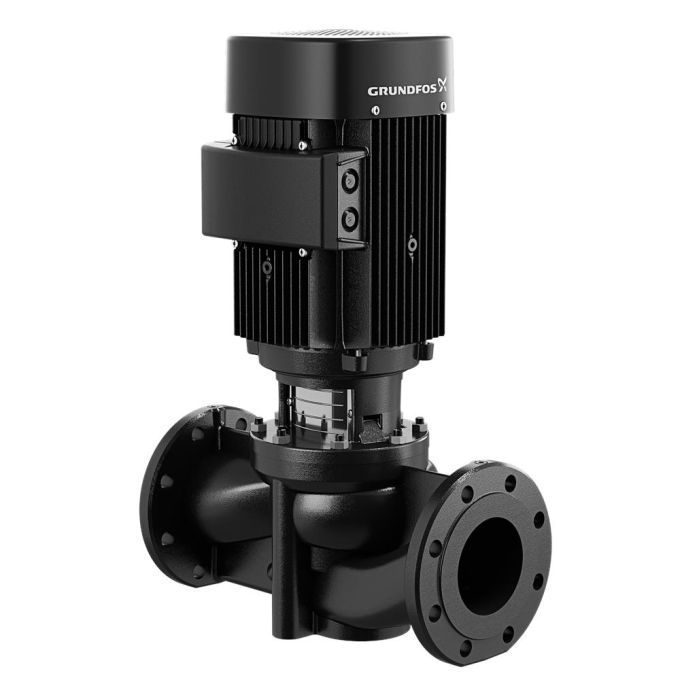

TP 65-120/2 A-F-A-BQQE-GW1 Single-stage, close-coupled, volute (centrifugal) pump unit with in-line suction and discharge ports of identical diameter.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£3,232.80 RRP £2,101.32 £1,751.10

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

TP 65-120/2 A-F-A-BQQE-GW1

Single-stage, close-coupled, volute (centrifugal) pump unit with in-line suction and discharge ports of identical diameter. The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is equipped with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. All pipework connection is via PN 6/10 DIN flanges (EN 1092-2 and ISO 7005-2). The pump is equipped with a fan-cooled asynchronous motor.

Suitable for: Commercial air conditioning

Key Product Features

Net weight: 32.6 kg
Mains frequency: 50 Hz
Rated Head: 8.3 m
Max Head: 120 dm
Rated Flow: 25.7 m³/h
Product Voltage: 3 x 220-240D/380-415Y V
Temperature Liquid Range: -25 .. 120 °C
Pumped Liquid: Water
Port to Port Length: 340 mm
Connection Size: DN 65
Type of connection: DIN
Maximum Operating Pressure: 10 bar
Impeller Material: Stainless Steel
Pump Housing Material: Cast Iron

This is a Grundfos Circulator pump which can be used within closed loop cooling, heating and hot water systems.

Grundfos (est. 1945) is a Danish pump manufacturer known for high-efficiency circulators, multistage boosters, borehole and wastewater pumps, plus packaged pressure systems. The range covers HVAC circulation, domestic hot water recirculation, pressure boosting, industrial water transfer and public water management, with strong focus on energy efficiency and intelligent controls.

More Information
Price	£1,751.10
Manufacturer	Grundfos
Warranty	1 year guarantee
Dimensions	447mm (h) x 340mm (w) x 200mm (d)
Electrical supply	415V
AC Power	Three Phase
Speed	Fixed
Flow Rate	666 Ltr/min
Max Head	12m
Water type	Clean or Discoloured
Pump Type Filter	Centrifugal Pump
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	Yes
Port To Port	340mm
Manufacturers Part Number	98585759
