Grundfos - Unilift KP.250.AV.1 Submersible Wastewater Pump - 110v - Single Phase - 186 Ltr/min.

Grundfos - Unilift KP.250.AV.1 Submersible Wastewater Pump - 110v - Single Phase - 186 Ltr/min. - 012C6900

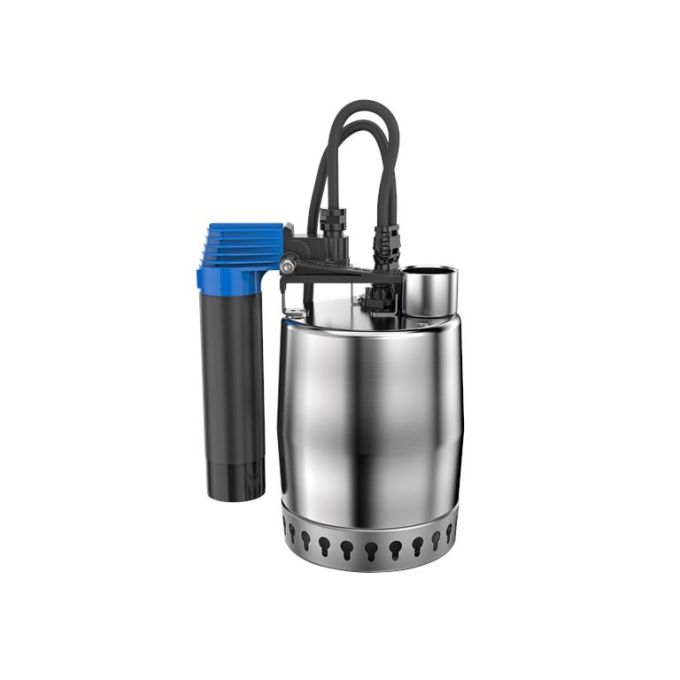

UNILIFT KP.250.AV.1
Submersible drainage pump

Vertical single-stage grade 304 stainless steel submersible pump with vertical discharge outlet port and integrated submersible 1-phase canned motor in insulation class F with thermal overload protection.

The pump is fitted with suction strainer and a carrying handle and is supplied with a 10 m mains cable and vertical level switch for automatic start and stop.

The hydraulic impeller is a semi-open hydraulic impeller for 10 mm free passage designed and rated for fluid conveyance groundwater, surface water, rain water and similar liquids.

The pump has a double mechanical shaft seal consisting of two lip seals with grease in-between.

The pump has an outer pump casing ensuring continuous cooling of the motor by the fluid medium being conveyed. The rotor shaft operates in two maintenance-free carbon bearings cooled by the fluid medium being conveyed

The motor is filled with a non-toxic motor liquid.

Real-world product applications

• Handling liquids containing suspended solids
• Supporting drainage in foul-water installations
• Assisting with wastewater movement on sites and properties
