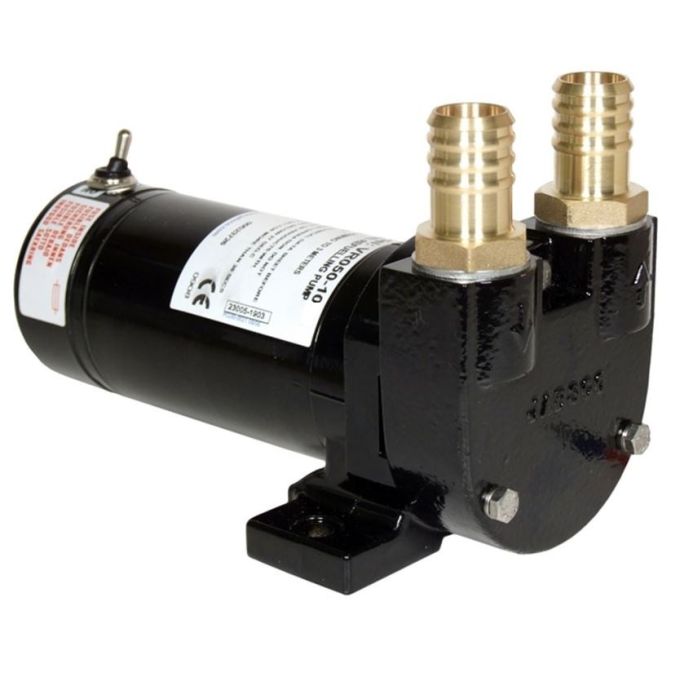

Jabsco - Fuel Pump - VR050-1122 - OBSOLETE - 24V - 10m Head

Name: Jabsco - Fuel Pump - VR050-1122 - OBSOLETE - 24V - 10m Head
Brand: Jabsco
SKU: JAB-VR050-1122
Price: 279.36 GBP
Availability: OutOfStock

Part Number:

JAB-VR050-1122

Includes Faster refuelling - 50 litres/minute (13 GPM) High head capability - 10 metres (32 feet) Self priming up to 3 metres (9.6 feet) Continuously rated* Vibration tested IP55 protected motor 24V version with thermal cut-out protection Typical

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

Now Obsolete - See Replacement Below

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Includes

Faster refuelling - 50 litres/minute (13 GPM)

High head capability - 10 metres (32 feet)

Self priming up to 3 metres (9.6 feet)

Continuously rated*

Vibration tested

IP55 protected motor

24V version with thermal cut-out protection

Typical Applications:

Engineered for refuelling medium sizes diesel powered vehicles [typical tank sizes 200 - 500 litres (50 - 200 gallons)] from drums.

Appropriate for mounting to the following equipment: Excavators, Cranes, Road rollers (compactors), Pavers, Agricultural machines, Generators, Helicopters.

The Jabsco Fuel Pump - VR050-1122 - Obsolete is a Self Priming item. Voltage for this item is 24V. It has an actual flow rate of 50 Ltr/min. The maximum head for this pump is 10m.

Key Product Features

Flow rate: 50 Ltr/min
Voltage: 24V
Maximum head: 10m

Jabsco (est. 1938) manufactures pumps for marine and industrial fluid handling. Their ranges include diaphragm pumps, flexible impeller pumps and washdown/bilge solutions. Typical applications cover freshwater pressure, bilge pumping, fuel or liquid transfer and general marine service duties.

More Information
Price	£232.80
Manufacturer	Jabsco
Warranty	1 year guarantee
Impeller Type	Single
Electrical supply	24V
AC Power	Single Phase
Flow Rate	50 Ltr/min
Max Head	10m
Switch	None
Duty Type	Domestic
Pump Type Filter	Self-Priming
Next Day Delivery	No
Manufacturers Part Number	VR050-1122
