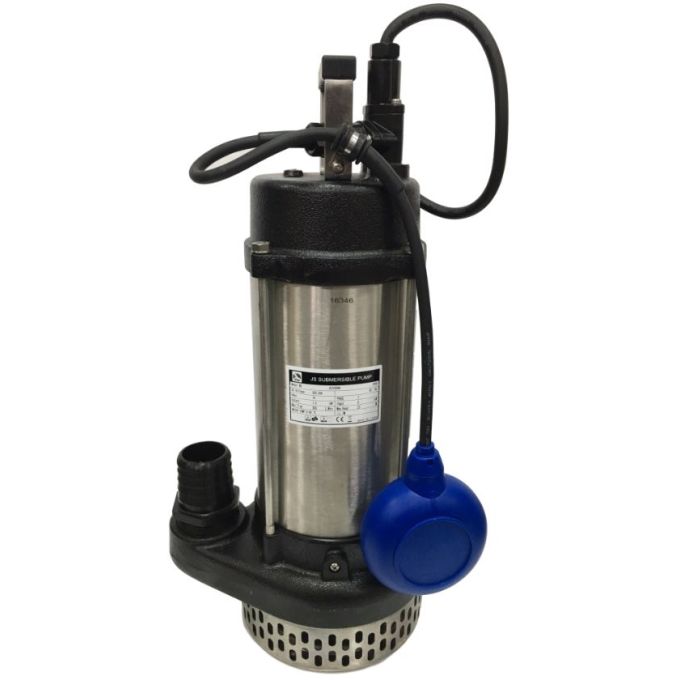

JS - 1500 H Submersible Pump - Automatic - 2Inch - 230V - 720 Ltr/min - 19m Head

Name: JS - 1500 H Submersible Pump - Automatic - 2Inch - 230V - 720 Ltr/min - 19m Head
Brand: JS
SKU: WRS-011-764A
Price: 842.52 GBP
Availability: InStock

Part Number:

WRS-011-764A

1500 H submersible water drainage pump. JS Pump Series are all-around dewatering pumps that offers top performance and long service life.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£991.20 RRP £842.52 £702.10

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

1500 H submersible water drainage pump. JS Pump Series are all-around dewatering pumps that offers top performance and long service life. High Head construction is used to meet required performance for effluent wastewater, sump emptying and general dewatering. Double mechanical seals (0.25kw and above), Class F motor insulation, a shaft sleeve to save on shaft wear due to abrasives and corrosion, additional lip seal protection, thermal overload protection and an enhanced cable entry sealing system are included. This version is automatic with float switch, 230v.

Range Information

The JS 1500H high-head drainage range is a high-head version of the JS drainage family, designed for dewatering duties where extra head is required. It is available in manual or automatic versions, with the wider JS drainage range also featuring double mechanical seals, Class F motor insulation and added seal protection.

Key Product Features

INCLUDED: Our JS Pumps come with a hose tail attachment, designed to provide secure and reliable hose connection.
Double mechanical seals (0.25KW and above).
Class F motor insulation
Shaft sleeve saves on shaft wear due to abrasives and corrosion.
Additional lip seal protection keeps impurities and abrasives away from the mechanical seals
Thermal overload protection guards against high amperage and high temperature
Enhanced cable entry sealing system
Slide rail kits available to make pumps installation and removal easier and safer
Flow rate: 720 Ltr/min
Water type: Dirty Water
Voltage: 230V
Maximum head: 19m
Cable length: 10m

JS Pumps are a brand of submersible pumps designed for a variety of applications, including drainage, dewatering, and sewage handling. The JS Pump brand is certified to ISO 9001 and offers a wide range of submersible pump models suited for industrial, agricultural, domestic, mining, aggregate, and steel industry applications.

More Information
Price	£702.10
Manufacturer	JS
Warranty	1 year guarantee
Dimensions	H510 x D195 x Dia285 mm
Impeller Type	Single
Electrical supply	230V
AC Power	Single Phase
Cable length	10m
Flow Rate	720 Ltr/min
Max Head	19m
Pump Operation	Automatic (with float switch)
Water type	Dirty Water
Pump Type Filter	Submersible
Switch	Float Switch
Duty Type	Domestic
Submersible vs Surface Mounted	Submersible
Next Day Delivery	Yes
Connection Size	2 inch
Manufacturers Part Number	011-764A
