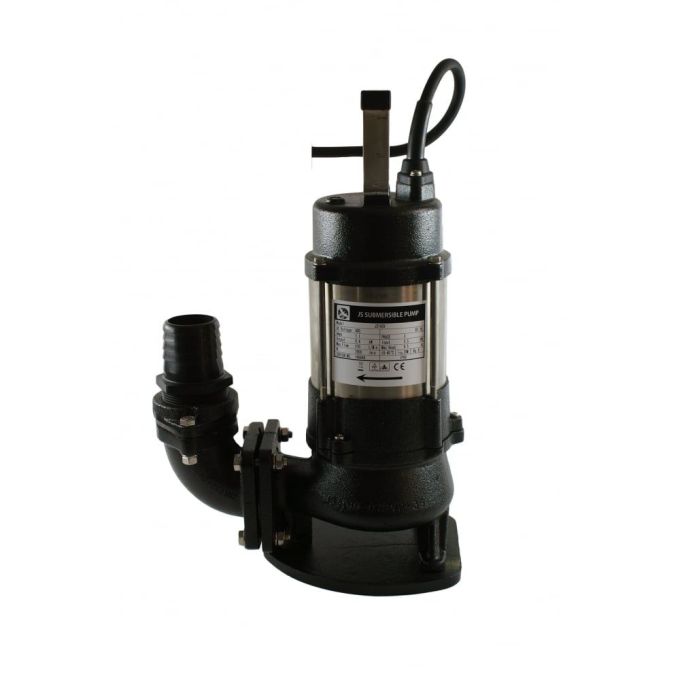

JST-55SV 4" Manual Submersible Sewage Vortex Pump - 415V - Three Phase - 2600 Ltr/min - 12m Head

Name: JST-55SV 4" Manual Submersible Sewage Vortex Pump - 415V - Three Phase - 2600 Ltr/min - 12m Head
Brand: JS
SKU: 012-788
Price: 2473.5 GBP
Availability: InStock

Part Number:

012-788

JST-55SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£2,910.00 RRP £2,473.50 £2,061.25

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

JST-55SV submersible sewage vortex pump. The JS Pump SV series effectively transfers suspended solids through the use of its vortex impeller and wide volute casing. Vortex flow and a large passage allow minimum contact between pumped solids and impeller and offer less pump blockage. Double mechanical seals (0.25kw and above), Class F motor insulation, a shaft sleeve to save on shaft wear due to abrasives and corrosion, additional lip seal protection, thermal overload protection, an enhanced cable entry sealing system and the option of slide rail kits are included. This version is manual no float switch, 415v and three-phase.

Range Information

The JST SV range is the three-phase version of the JS sewage vortex family and is intended for suspended-solids transfer using a vortex impeller and wide volute casing. The large passage helps reduce contact between solids and the impeller to minimise blockage. Supporting features include double mechanical seals, Class F motor insulation and enhanced seal protection.

Key Product Features

INCLUDED: Our JS Pumps come with a hose tail attachment, designed to provide secure and reliable hose connection.
Flow rate: 2600 Ltr/min
Water type: Sewage
Voltage: 415V
Maximum head: 12m

More Information
Price	£2,061.25
Manufacturer	JS
Warranty	1 year guarantee
Impeller Type	Vortex Impeller
Electrical supply	415V
AC Power	Three Phase
Flow Rate	2600 Ltr/min
Max Head	12m
Water type	Sewage
Pump Type Filter	Submersible
Duty Type	Commercial
Submersible vs Surface Mounted	Submersible
Next Day Delivery	No
Manufacturers Part Number	012-788

Data Sheet(s)
