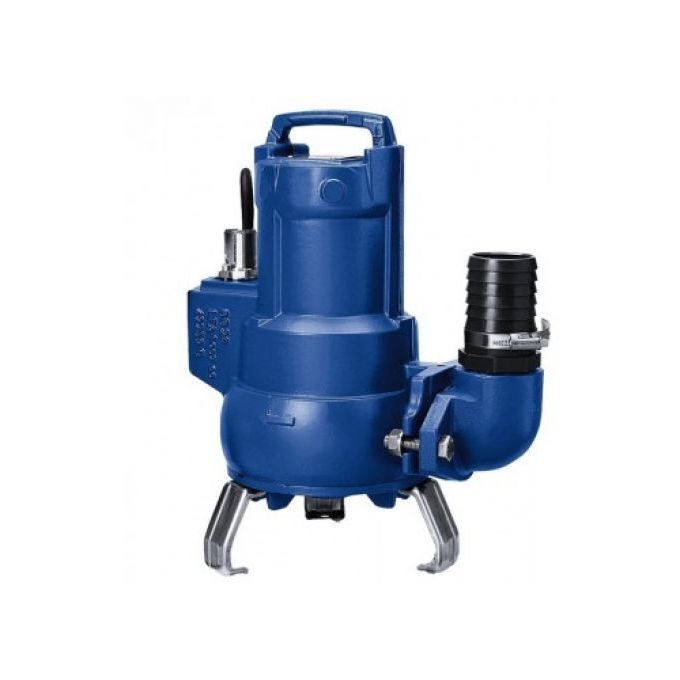

KSB - AMA Porter 601 ND Submersible Drainage Pump - 3 Phase - 20 M Cable - 415V - 8m Head

The pump is appropriate for various applications, including:

The AMA-Porter 601 ND offers several advantages:

This pump model does not come with a float switch

The KSB AMA Porter 601 ND Submersible Drainage Pump - 3 Phase - 20 M Cable is a Submersible product. Voltage for this item is 415V. It is supplied with a 20m cable. The maximum head for this pump is 8m.

Real-world product applications

• Dewatering flooded areas such as basements and pits
• Draining water from excavations, trenches, and site works
• Removing water from sumps, chambers, and collection points
• Supporting general drainage and clean-up tasks
• Transferring water from tanks or containers

Key Product Features

• Power: 0.75 KW (1 HP) motor
• Voltage: 415V 3-phase, 50Hz
• Maximum flow rate: 30 m³/hr (8.33 l/sec)
• Maximum head: 8-8.1 meters
• Full load current: 2.8A
• Solids handling capability: Up to 60mm
• Connection type: 2 1/2 inch flanged female discharge port
• Cable length: 20 meters (as specified in the query, though standard models come with 10 meters)
• IP rating: IP68 (fully submersible)
• Water type: Dirty Water
• Maximum head: 8m

• Pumping wastewater from toilets, washing machines, and dishwashers
• Handling domestic sewage in intermittent operation
• Draining surface water or rainwater from car parks and uneven surfaces
• Removing water from flooded rooms, cellars, or surfaces

• High operating reliability, even under tough conditions, due to its generously sized motor and thermal overload protection
• Easy installation and removal with automatic, bolt-free connection for stationary installation
• Trouble-free operation with a free-flow impeller that prevents clogging by coarse particles
• Long service life thanks to a corrosion-resistant Stainless Steel shaft and bi-rotational mechanical seal

KSB (est. 1871) is a German manufacturer of pumps and valves for water, wastewater and industry. Product ranges include centrifugal process pumps, booster systems and submersible sewage pumps. Typical applications include public water treatment, building services, industrial processing and power-generation-related water duties.
