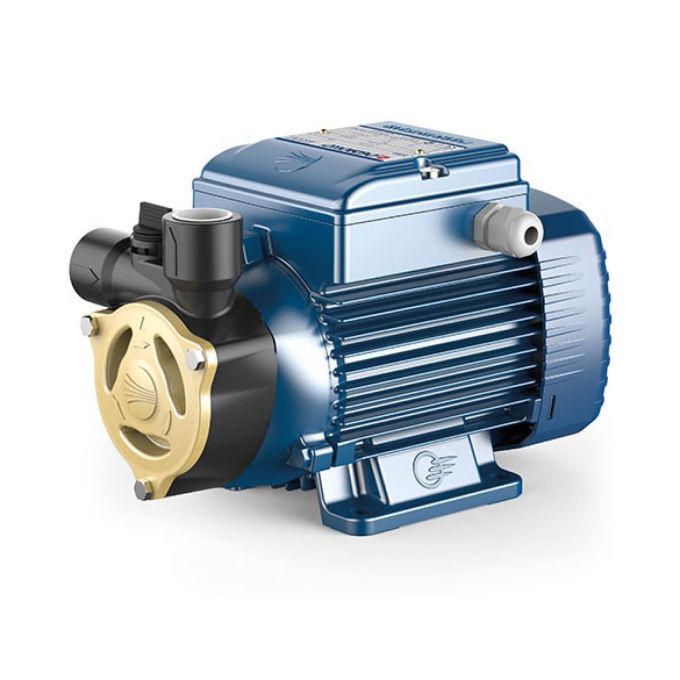

Pedrollo - PQAM 60 Peripheral Pump - Single Phase - 10 Bar. - 40.5m Head

The Pedrollo PQAM 60 Peripheral Pump is designed for pumping clean water without abrasive particles, along with liquids that are not chemically aggressive to the pump's construction materials. Built with a PPS and brass pump body, this surface pump offers strong resistance to rust and oxidation, making it a practical solution for industrial duties where durability and dependable performance are important.

The PQA range is well suited to industrial applications such as cooling systems, air conditioning and laundry installations, where compact design and reliable clean water handling are required. Its peripheral pump construction supports efficient operation across a wide range of light industrial water transfer duties.

For correct installation and long-term reliability, the pump should be fitted in well-ventilated enclosed areas or in locations protected from adverse weather conditions.

Key Product Features

• Pedrollo PQA peripheral pump for industrial clean water applications
• Suitable for liquids that are not chemically aggressive to pump materials
• Designed for clean water free from abrasive particles
• PPS and brass pump body helps resist rust and oxidation
• Suitable for industrial applications including cooling, air conditioning and laundries
• Compact design for industrial installations
• For installation in well-ventilated enclosed or weather-protected environments
• Manufactured in line with EN 60335-1, IEC 60335-1, EN 60034-1 and IEC 60034-1
• Pump Type: Peripheral surface pump for industrial use
• Liquid temperature range: -10 °C to 90 °C
• Maximum suction lift: 8 m
• Maximum ambient temperature: 50 °C
• Maximum working pressure: 10 Bar
• Connection type: Gas threaded
• Suction connection: 1/2''
• Delivery connection: 1/2''
• Flow rate: 2 - 32 l/min
• Head range: 38 - 5 m
• Maximum head: 40.5 m
• Voltage: 220-230 V
• Phases: 1
• Frequency: 50 Hz
• Speed: 2900 rpm
• Rated power output: 0.30 kW
• Input power P1: 0.51 kW
• Rated current: 2.3 A
• Capacitor: 10 µF
• Capacitor voltage: 450 V
• Insulation class: F
• Protection rating: IPX4

Pedrollo (est. 1974) is an Italian manufacturer offering surface and submersible pumps including centrifugal, self-priming, multistage, borehole and drainage ranges. Pedrollo pumps are widely used for domestic water supply, garden and agricultural irrigation, pressure boosting, clean-water transfer and light commercial installations.
