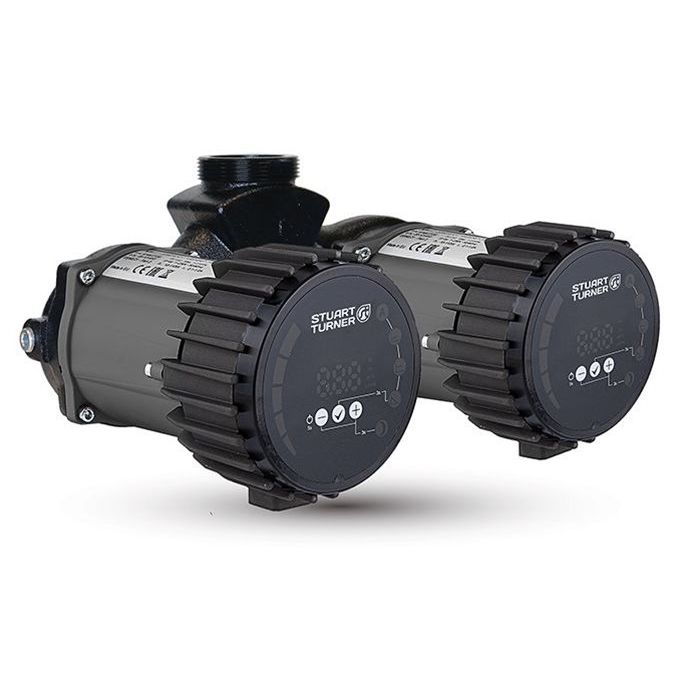

Stuart Turner - Pulse D 32/100-180 Commercial Cast Iron Circulator - Twin Union - Single Phase - 196 Ltr/min

Name: Stuart Turner - Pulse D 32/100-180 Commercial Cast Iron Circulator - Twin Union - Single Phase - 196 Ltr/min
Brand: Stuart Turner
SKU: 47423
Price: 838.8 GBP
Availability: InStock

Part Number:

47423

Industrial Circulator - Cast Iron Twin Union Stuart Pulse Cast Iron Circulators are used for the transfer of liquid within setups for hot-water heating, air-conditioning and ventilation.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,788.00 RRP £838.80 £699.00

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Industrial Circulator - Cast Iron Twin Union

Stuart Pulse Cast Iron Circulators are used for the transfer of liquid within setups for hot-water heating, air-conditioning and ventilation.

These twin head variable speed circulators are engineered to constantly monitor and regulate pressure and flow and adjust according to the set operating mode.

Real-world product applications

Circulating water around closed-loop pipework systems
Maintaining flow through distribution circuits
Supporting recirculation in building services installations
Keeping consistent flow through equipment or pipe runs
Assisting with loop circulation for system efficiency

Key Product Features

Automatic, proportional pressure, constant pressure and constant speed operating modes

Automatic night operation mode

ECM permanent magnet technology

Automatic venting cycle

Robust Cast Iron housing

Continuously rated

Carbon bearings

180 mm fitted length

G2 union connections

ErP compliant

Built-in over-current, temperature and over-voltage protection

LED display control panel

2 year warranty

Stuart Turner (est. 1906) is a UK manufacturer of water boosting and pressurisation systems. Their ranges include shower pumps, whole-house boosting sets and mains-pressure solutions. Typical applications are improving water pressure and flow in homes and light commercial buildings.

More Information
Price	£699.00
Manufacturer	Stuart Turner
Warranty	1 year guarantee
Electrical supply	230V
AC Power	Single Phase
Flow Rate	196 Ltr/min
Max Head	10.5m
Water type	Clean or Discoloured
Pump Type Filter	Circulator Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Next Day Delivery	Yes
Port To Port	180mm
Connection Type	G 2
Manufacturers Part Number	47423
