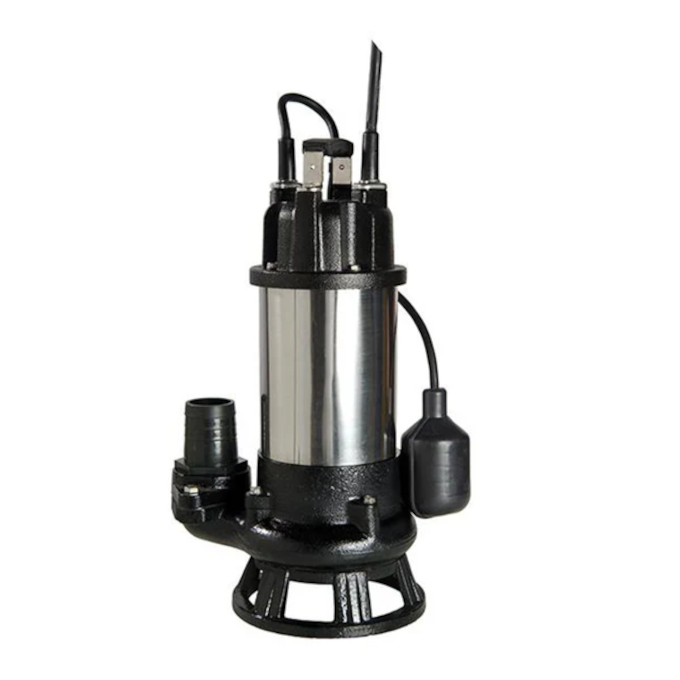

Tsurumi - DSPK-10A Sewage Cutter Pump - 230V - Automatic

The Tsurumi - DSPK-10A Sewage Cutter Pump - 15-10-1085 is a robust and efficient submersible pump designed for handling sewage and industrial wastewater containing destructible solids. This automatic model, operating on 230V, is specifically engineered to reduce solid particles and reliably transport liquid over short to medium distances. Key Product InformationPerformance

• Flow rate: 430 litres per minute
• Maximum head: 13 metres
• Power: 0.75 KW (1 HP)

Construction

• Outlet size: 50mm
• Free passage: 20mm
• Dimensions: 190mm (width) x 255mm (length) x 445mm (height)
• Weight: 21 kg

Design

• Automatic operation with built-in float switch
• Single-channel cast iron impeller with tungsten carbide tip
• Serrated suction cover for efficient cutting action
• 410 Stainless Steel shaft
• Mechanical seal and oil seal in an oil chamber

Uses The DSPK-10A is suitable for a wide range of Uses in both domestic and industrial settings where fragmented suspended solids need to be pumped. Its robust construction and cutting mechanism make it ideal for:

• Sewage treatment plants
• Industrial wastewater management
• Commercial buildings
• Residential complexes with challenging waste disposal needs

TheDSPKrange of cutter pumps are for sewage where destructible solids need to be reduced and pumped over a short or medium distance. The impeller rotates against a serrated suction cover to cut solids before pumping. Supplied as standard free-standing, an optional auto coupling set is available for guide rail mounting. Single-phase models are available with or without a float switch.

Real-world product applications

• Handling liquids containing suspended solids
• Supporting drainage in foul-water installations
• Assisting with wastewater movement on sites and properties

Key Product Features

• Flow rate: 430 Ltr/min
• Water type: Sewage
• Voltage: 230V
• Maximum head: 13m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
