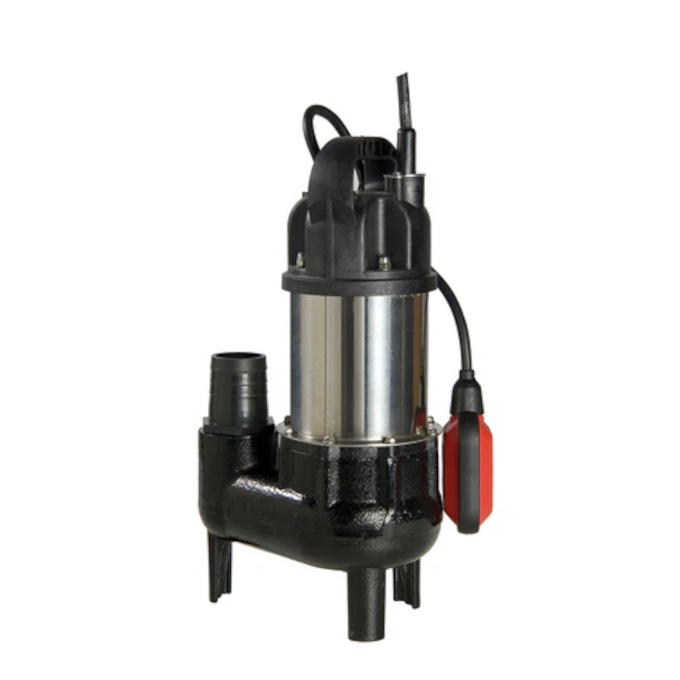

The Tsurumi - BCV-400-50A is a robust and efficient automatic submersible sewage Pump - 15-10-1102 designed for handling wastewater containing solids and fibrous materials. This model, with part number 15-10-1102, is specifically engineered to provide reliable dynamic performance in challenging environments.
TheBCVseries with 50mm/2" outlet have vortex impellers and large pump casings, for pumping sewage and waste containing fibrous material, submerged debris and solids. Construction is in Cast Iron and Stainless Steel. High flow and large solids capacity are major features of these pumps. Standard discharge is 2" BSPF, with a 50mm hose tail, howeverBCV-750-50is also available with a round, horizontal flange to enable connection to other manufacturer's guide rail systems. Available as manual or with a pendant float switch, for automatic operation (230V only). They are not recommended for ponds or water features.
TheBCVseries with 75mm/3" outlet have vortex impellers and large pump casings, for pumping sewage and waste containing fibrous material, submerged debris and solids. Construction is in Cast Iron and Stainless Steel. High flow and large solids capacity are major features of these pumps. Standard discharge is a square flange with a separate 3" BSPF elbow and a 75mm hose tail (both supplied) howeverBCV-1500-50is also available with a round, horizontal flange to enable connection to other manufacturer's guide rail systems. An auto-coupling set is available as an optional extra to allow the fitting of guide rails on all models. Available as manual or with a pendant float switch, for automatic operation (230V only). They are not recommended for ponds or water features.
Key SpecificationsPower and Electrical
Performance
- Maximum Flow Rate: 380 litres per minute
- Maximum Head: 7.5 metres
Product Sizing
- Outlet Diameter: 50 mm
- Free Passage: 50 mm
- Dimensions: 146 mm (width) x 222 mm (length) x 430 mm (height)
- Dry Weight: 11.8 kg
Operation
- Pump Type: Automatic
- Impeller Type: Vortex
Features and BenefitsThe BCV-400-50A is part of Tsurumi's BCV series, which is renowned for its high flow capacity and ability to handle large solids. This particular model is equipped with an automatic float switch, allowing for unattended operation in various Uses such as:
- Sewage pumping stations
- Wastewater treatment plants
- Industrial effluent management
- Flood control and drainage
The vortex impeller design ensures efficient handling of liquids containing suspended solids and fibrous materials, reducing the risk of clogging and minimising maintenance requirements. The pump's compact size and relatively light weight make it easy to install and transport, while its robust construction from high-quality materials ensures durability and longevity in harsh operating conditions.
With its automatic operation, the BCV-400-50A provides a reliable solution for continuous sewage and wastewater management, making it an excellent choice for both residential and light commercial Uses where consistent dynamic performance is crucial.
Real-world product applications
- Handling liquids containing suspended solids
- Supporting drainage in foul-water installations
- Assisting with wastewater movement on sites and properties
Key Product Features
- Flow rate: 380 Ltr/min
- Water type: Sewage
- Voltage: 230V
- Maximum head: 7.5m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
