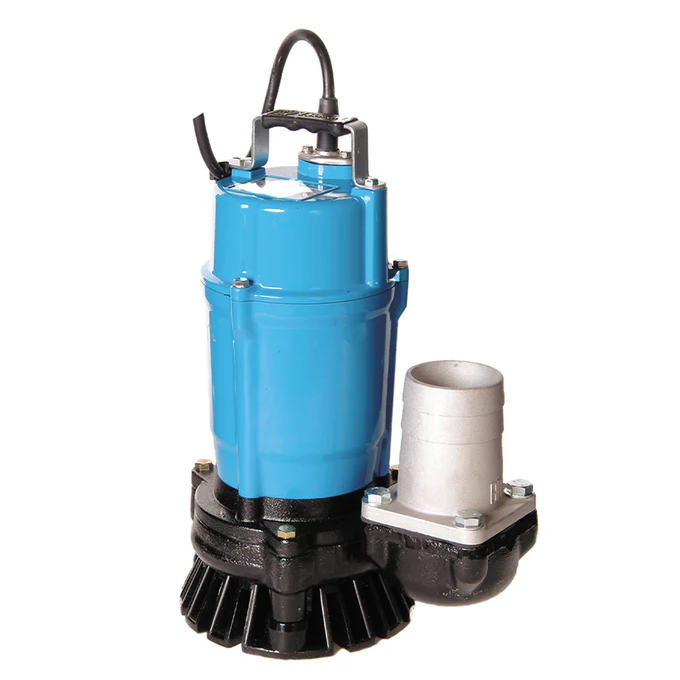

Tsurumi - HS2.4S Submersible Pump - 230V - Manual

The Tsurumi - HS2.4S Submersible Pump - 10-10-1181 is a robust and versatile solution designed for demanding Uses.

TheHSseries is a lightweight and robust range of single-phase contractors' pumps used widely by tool rental companies, utilities and in the construction industry. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position; the spiral shape minimizes clogging. These combine with a urethane impeller, stirrer and Cast Iron pump chamber to give excellent wear and blockage resistance in water that contains sand and silt. The high-performance motor enables long periods of operation while partially submerged.

The puddle pump adaptor kit is an optional extra that will convert theHS2.4Smanual to a puddle sucker. It will enable the pumping of water levels down to 10mm, maximize utilisation and is very simple to fit. The kit comprises a rubber coated steel bottom plate, Stainless Steel bolts, nuts and washers.

Product General Information:

• Model: HS2.4S
• Type: Manual (non-automatic)
• Voltage: 230V / 50Hz (single phase)
• Motor Power: 0.4 kW
• Discharge Size: 50mm (2")
• Maximum Flow Rate: 205 litres/minute
• Maximum Head: 12 metres
• Free Passage: 7mm

• Robust Construction: Features a solid cast aluminium body, Cast Iron pump casing, and an impact-resistant PVC strainer base for enhanced durability
• Versatile Uses: Suitable for construction sites, civil engineering projects, hire fleets, utilities, dewatering, and water features
• Abrasion Resistant: Equipped with a urethane vortex impeller, offering excellent wear resistance when pumping water containing sand and silt
• Continuous Operation: Capable of running 24 hours a day
• Dirty Water Handling: Designed to pump spring water, rainwater, groundwater, and sand-laden water with reduced risk of blockages

• Motor Type: 2-pole induction motor with IP68 protection
• Insulation Class: E
• Built-in Motor Protection: Miniature protector
• Shaft Seal: Double mechanical seal (silicon carbide in oil bath)
• Impeller Type: Semi-vortex impeller made of urethane rubber
• Casing Material: Ductile iron casting (EN-GJS-700-2)
• Cable: Rubber, H07RN-F

The Tsurumi - HS2.4S is renowned for its reliability and dynamic performance in challenging conditions. It is an excellent choice for contractors and industrial users requiring a dependable submersible pump for various water movement Uses.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 205 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 230V
• Maximum head: 12m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
