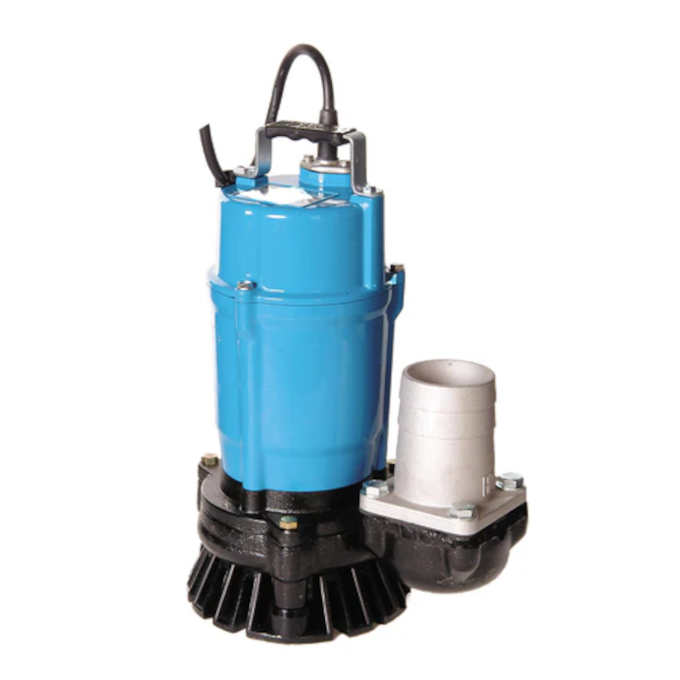

Tsurumi - HS2.75S Submersible Pump - 110V - Manual

The Tsurumi - HS2.75S Submersible Pump - 10-10-1020 (Manual, 110V) is a robust and versatile water pump designed for various Uses in environments like construction, industrial, and domestic settings. This model, with SKU 10-10-1020, offers reliable dynamic performance for efficiently moving water in challenging environments.

TheHSseries is a lightweight and robust range of single-phase contractors' pumps used widely by tool rental companies, utilities and in the construction industry. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position; the spiral shape minimizes clogging. These combine with a urethane impeller, stirrer and Cast Iron pump chamber to give excellent wear and blockage resistance in water that contains sand and silt. The high-performance motor enables long periods of operation while partially submerged.

The puddle pump adaptor kit is an optional extra that will convert theHS2.4Smanual to a puddle sucker. It will enable the pumping of water levels down to 10mm, maximize utilisation and is very simple to fit. The kit comprises a rubber coated steel bottom plate, Stainless Steel bolts, nuts and washers.

Performance

• Maximum Flow Rate: 230 litres per minute
• Maximum Head: 18 metres
• Free Passage: 7 mm

Product Sizing

• Discharge Outlet: 50 mm (2 inches)
• Dimensions (W x L x H): 185 x 290 x 385 mm
• Dry Weight: 16.9 kg

Electrical

• Power: 0.75 kW
• Phase: Single phase

• Pump Type: Semi-vortex impeller
• Shaft Seal: Double mechanical seal in oil bath
• Motor: 2-pole induction motor with IP68 protection
• Built-in Protection: Miniature motor protector
• Insulation: Class E

Materials

• Impeller: Urethane rubber
• Casing: Ductile iron casting (EN-GJS-700-2)
• Shaft: Stainless Steel (EN-X6Cr13)
• Cable: Rubber, H07RN-F

The HS2.75S is suitable for pumping various types of water, including:

• Spring water
• Rainwater
• Groundwater
• Sand-carrying water

This pump is particularly well-suited for construction site dewatering, flood control, and other Uses where reliable water removal is essential.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 230 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 110V
• Maximum head: 18m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
