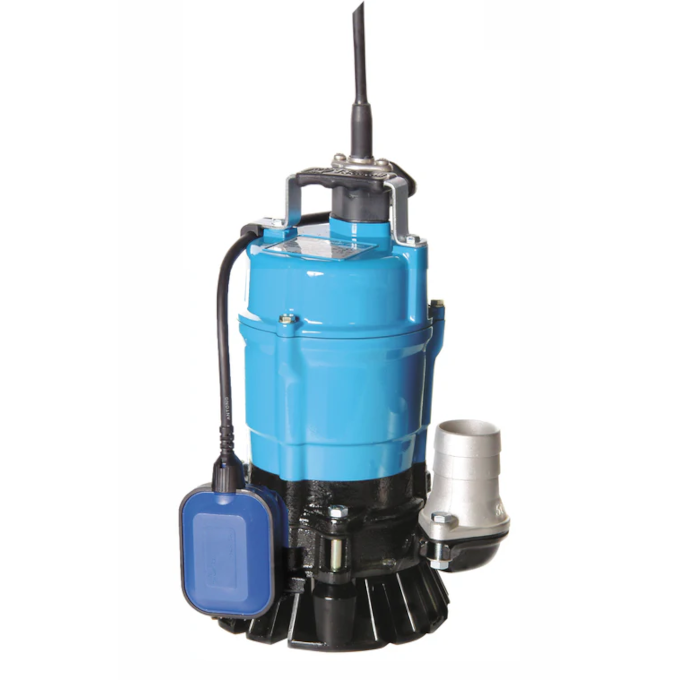

Tsurumi - HS2.4S Submersible Pump - Pendant Float Switch - 110V

The Tsurumi - HS2.4S Submersible Pump - 10-10-1195, equipped with a pendant float switch and operating at 110V, is a versatile and robust water pump designed for demanding Uses.

For the automatic control of water levels, theHSseries is available with sensor and float switches: The Sensor switch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the level of the water entry of the volute at 50mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with optional extensions, to enable a lower "on" and "off" level.

Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.

Thefloat-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.

This pump delivers exceptional dynamic performance for its size:

• Flow rate of 205 litres per minute
• Maximum head of 12 metres
• 0.4 KW power output
• 2-inch (50mm) outlet diameter
• Capable of handling solids up to 7mm in size

The HS2.4S is engineered to withstand challenging conditions:

• Solid cast aluminium body with a Cast Iron pump casing
• Impact-resistant PVC strainer base
• Urethane vortex impeller for outstanding wear resistance
• 403 Stainless Steel shaft
• Double mechanical seal operating in an oil chamber with stirring device

• Can be submerged to a maximum depth of 10 metres
• Suitable for continuous 24-hour operation
• Pendant float switch for automatic operation
• Automatically shuts off when the water level drops to prevent dry running

The Tsurumi - HS2.4S is ideal for:

• Construction site dewatering
• Drainage in ditches and footings
• Industrial Uses
• Pumping water containing sand, silt, or dirt in suspension

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 205 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 110V
• Maximum head: 12m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
