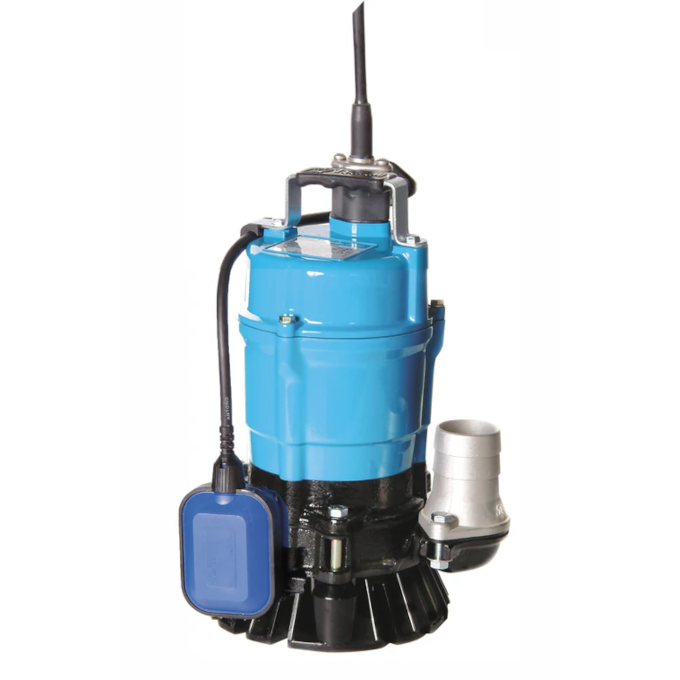

The Tsurumi - HS2.75S Submersible Pump - 10-10-1237 is a versatile and reliable piece of equipment designed for various drainage Uses in environments like construction, industrial, and domestic settings. This particular model, with part number 10-10-1237, features a pendant float switch and operates on a 230V power supply.
For the automatic control of water levels, theHSseries is available with sensor and float switches: The Sensor switch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the level of the water entry of the volute at 50mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with optional extensions, to enable a lower "on" and "off" level.
Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.
Thefloat-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.
Key Product InformationPerformance
- Maximum Flow Rate: 230 litres per minute
- Maximum Head: 18 metres
Technical Details
- Power: 0.75 kW
- Outlet Diameter: 50 mm (2 inches)
- Free Passage: 7 mm
UsesThe Tsurumi - HS2.75S is primarily used as a contractor pump for on-site drainage duties. Its robust construction and reliable dynamic performance make it suitable for:
- Construction site dewatering
- Flood water removal
- Industrial wastewater management
- Domestic drainage issues
Product Engineering InformationThe pump is built with durability in mind, featuring:
- Submersible design for efficient operation in water
- Pendant float switch for automatic operation
- Compact and portable build for easy transportation and placement
Benefits- High dynamic performance with a good balance of flow rate and head capacity
- Versatile usage across various Uses
- Automatic operation with the pendant float switch, reducing the need for constant monitoring
- Robust construction to withstand demanding work environments
The Tsurumi - HS2.75S Submersible Pump with pendant float switch and 230V power supply is an excellent choice for professionals and homeowners alike who require a reliable and efficient solution for water removal and drainage tasks.
Real-world product applications
- Removing water from pits, sumps, and collection points
- Supporting drainage and water transfer duties
- Dewatering flooded areas and low-lying spaces
- Transferring water from tanks and containers
- Assisting with general submersible pumping tasks
Key Product Features
- Flow rate: 230 Ltr/min
- Water type: Clean or Discoloured
- Voltage: 230V
- Maximum head: 18m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
