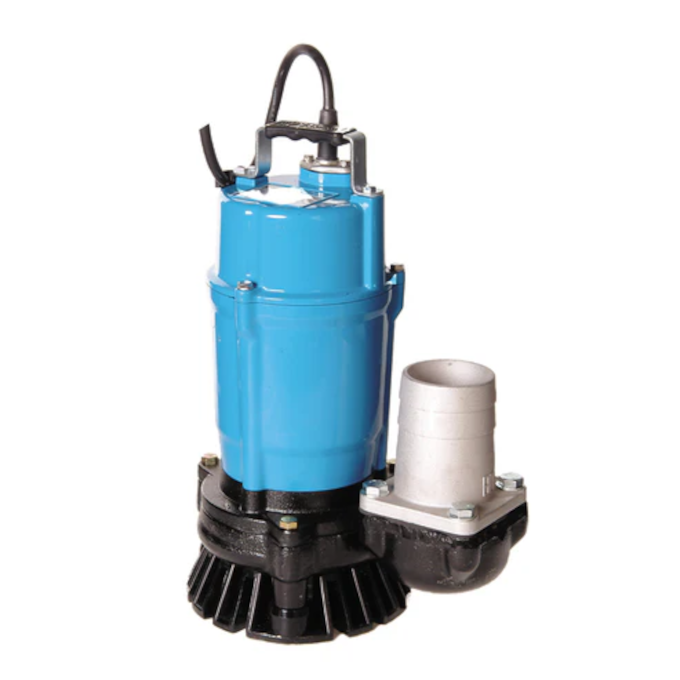

Tsurumi - HS3.75SL Submersible Pump - AGMA Switch - 230V

The Tsurumi - HS3.75SL Submersible Pump - 10-10-1044 - AGMA Switch - 230V (SKU 10-10-1044) is a high performing versatile submersible pump designed for efficient water management across a wide range of Uses. This robust pump combines durability, reliability, and advanced features to deliver exceptional dynamic performance in challenging environments. Key FeaturesPowerful Motor: The HS3.75SL is fitted with a 230V motor, providing ample power for demanding pumping tasks. AGMA Switch: This pump incorporates an integrated AGMA (Automatic Ground Water Alarm) switch, ensuring automatic operation and protection against dry running. Durable Construction: Manufactured with high-quality materials, including a cast iron pump casing and motor frame, the HS3.75SL is engineered to withstand harsh conditions and abrasive materials. Efficient Impeller Design: The pump utilises a multi-vane semi-open impeller crafted from high chrome cast iron, offering superior dynamic performance and resistance to wear. Dual Mechanical Seal: A dual inside mechanical shaft seal system, protected by an oil-filled chamber, enhances the pump's longevity and reliability. Thermal Protection: The motor is equipped with automatic thermal overload protection, safeguarding against overheating and extending the pump's service life. Uses The Tsurumi - HS3.75SL is ideal for:

• Wastewater management
• Construction site dewatering
• Flood control
• Agricultural irrigation
• Industrial water transfer

With its robust design and advanced features, the Tsurumi - HS3.75SL Submersible Pump (SKU 10-10-1044) is an excellent choice for professionals seeking a reliable and efficient solution for their water management requirements.

For the automatic control of water levels, theHSseries is available with sensor and float switches: The Sensor switch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the level of the water entry of the volute at 50mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with optional extensions, to enable a lower "on" and "off" level.

Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.

Thefloat-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.

Real-world product applications

• Removing water from pits, sumps, and collection points
• Supporting drainage and water transfer duties
• Dewatering flooded areas and low-lying spaces
• Transferring water from tanks and containers
• Assisting with general submersible pumping tasks

Key Product Features

• Flow rate: 580 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 230V
• Maximum head: 10.8m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
