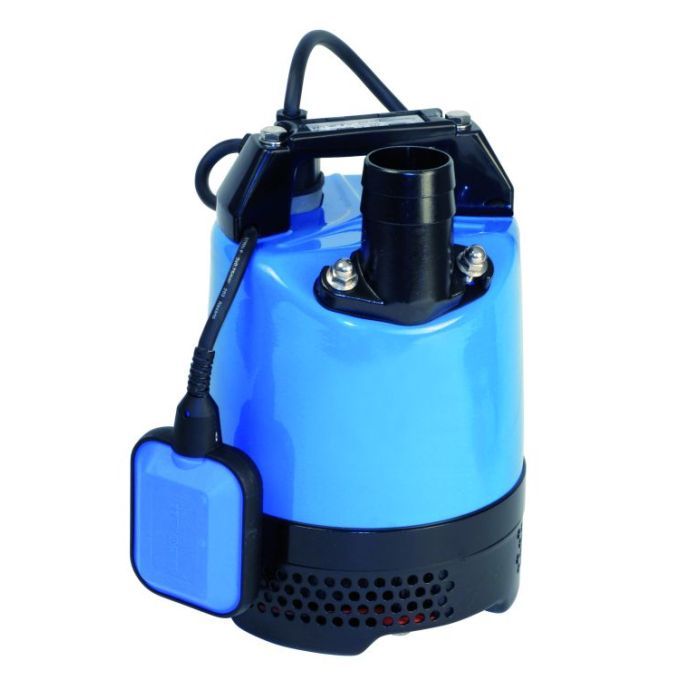

The Tsurumi - LB-800 Submersible Pump - 10-10-1130 (SKU: 10-10-1130) is a robust and versatile solution for various water removal Uses. This pendant-style pump operates on 110V and is engineered to handle demanding tasks with exceptional efficiency.
For the automatic control of water levels, LB480 and LB800 are available with sensor and float switches:
Theswitch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the suction cover at 20mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with, to enable a lower "on" and "off" level.
Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.
The float-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.
Key FeaturesCompact Design: The LB-800 boasts a slimline configuration, enabling installation in 8" pipes, making it ideal for confined spaces.
Powerful dynamic performance: With a 1 HP motor, this pump delivers impressive output:
- Maximum flow rate: 310 litres per minute
- Maximum head: 15 metres
Durable Construction: Manufactured with premium-grade materials, the LB-800 ensures long-lasting dynamic performance in challenging environments.
Top Discharge: The top discharge design provides optimal motor cooling efficiency, allowing for continuous duty operation at low water levels and extended dry-run capability.
Pendant Float Switch: This model includes a pendant-style automatic float switch for straightforward operation.
Key Product Spec- Motor Output: 1 HP (0.75 kW)
- Discharge Size: 2 inches (50 mm)
- Cable Length: 15.24 metres
- Dimensions (W x L x H): 227 x 187 x 408 mm
- Weight: 13.4 kg (dry weight)
- Maximum Solid Handling: 6 mm
UsesThe Tsurumi - LB-800 is suitable for various Uses, including:
- Construction site drainage
- Sump pump operations
- General water removal tasks
With its robust design and efficient dynamic performance, the Tsurumi - LB-800 Submersible Pump represents an excellent choice for professionals seeking a reliable and powerful water removal solution.
Real-world product applications
- Removing water from pits, sumps, and collection points
- Supporting drainage and water transfer duties
- Dewatering flooded areas and low-lying spaces
- Transferring water from tanks and containers
- Assisting with general submersible pumping tasks
Key Product Features
- Flow rate: 310 Ltr/min
- Water type: Dirty Water
- Voltage: 110V
- Maximum head: 15m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
