Tsurumi - LB 800 Drainage Pump - Sensor - 230V - Automatic

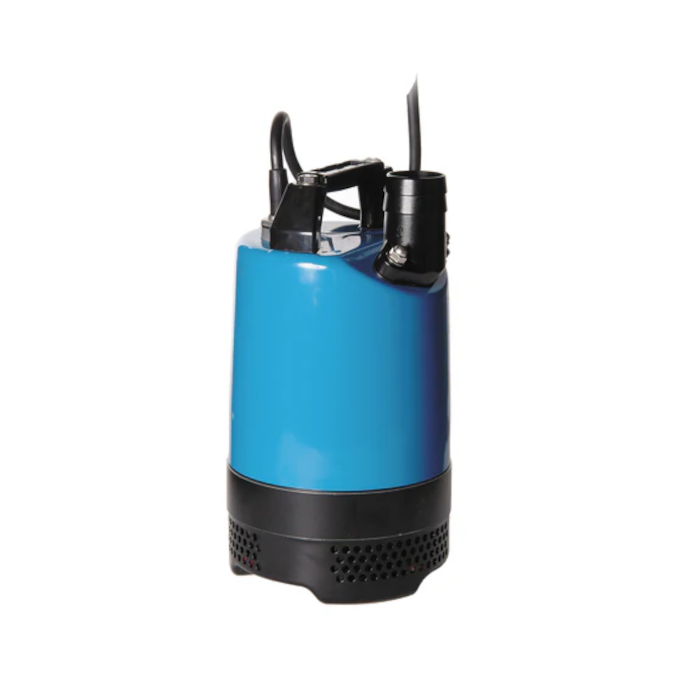

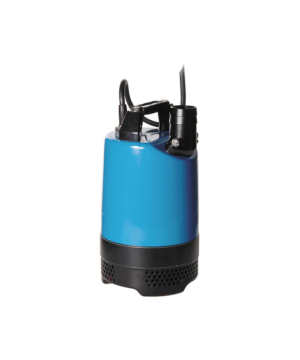

The Tsurumi - LB 800 Submersible Pump - 10-10-1347 - Automatic Sensor - 230V (SKU 10-10-1347) is a robust and versatile submersible pump engineered for efficient water removal across multiple Uses. This 1 HP electric pump harmoniously blends durability, dynamic performance, and convenience in a compact design. Key FeaturesPowerful dynamic performance: The LB 800 delivers impressive pumping capabilities with its 1 HP motor, capable of handling up to 82 gallons per minute. Compact Design: With a slender profile measuring 7-9/16 inches in diameter and 13-7/16 inches in height, this pump fits seamlessly into 8-inch pipes, making it ideal for confined spaces. Automatic Operation: Fitted with an automatic sensor, this 110V model offers hassle-free operation by automatically activating when water levels rise. Durable Construction: Manufactured with high-quality materials, including a urethane semi-vortex impeller and wear plates, the LB 800 ensures long-lasting dynamic performance in demanding conditions. Efficient Cooling: The top discharge design maximises motor cooling efficiency, allowing for continuous duty operation at low water levels and extended dry-run capability. Key Product Spec

• Motor Output: 1 HP
• Amperage: 9.6 Amps
• Discharge Size: 2 inches
• Cable Length: 50 feet
• Weight: 35 lbs
• Continuous Running Water Level: 2 inches
• Maximum Solid Diameter: 1/4 inch

The Tsurumi - LB 800 Submersible Pump is an excellent choice for construction site drainage, dewatering Uses, and general water removal tasks. Its combination of power, durability, and automatic operation makes it a reliable solution for both professional and residential use.

For the automatic control of water levels, LB480 and LB800 are available with sensor and float switches:

Theswitch has two 304 Stainless Steel probes that are encapsulated in moulded rubber and it is designed for portable Uses. The compact design and precise water level control also makes it suitable for fixed installations and narrow or shallow sumps. During use, when both probes touch water, the pump will start and continue to operate for one minute after the water level drops. However, if the water touches both probes again within this time, the pump continues pumping for another minute and will continue like this on demand, so keeping the water level constantly below the level of the probes at all times. The off level can be as low as the suction cover at 20mm, depending on the sump size or area being drained. Probes can be lengthened by 70mm or 170mm, with, to enable a lower "on" and "off" level.

Thefloat-switch has a power cable connected to a waterproof case that contains a ball bearing actuated switch and is designed for portable and fixed installations. The cable is clamped to the pump, with a small amount of adjustment to alter the "on" and "off" level.

The float-switch has a switch actuated by a floating cylinder, housed within a tube. Compact, with fixed "on" and "off" levels for precise level control, it is intended for narrow sumps and fixed installations.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 310 Ltr/min
• Water type: Dirty Water
• Voltage: 230V
• Maximum head: 15m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
