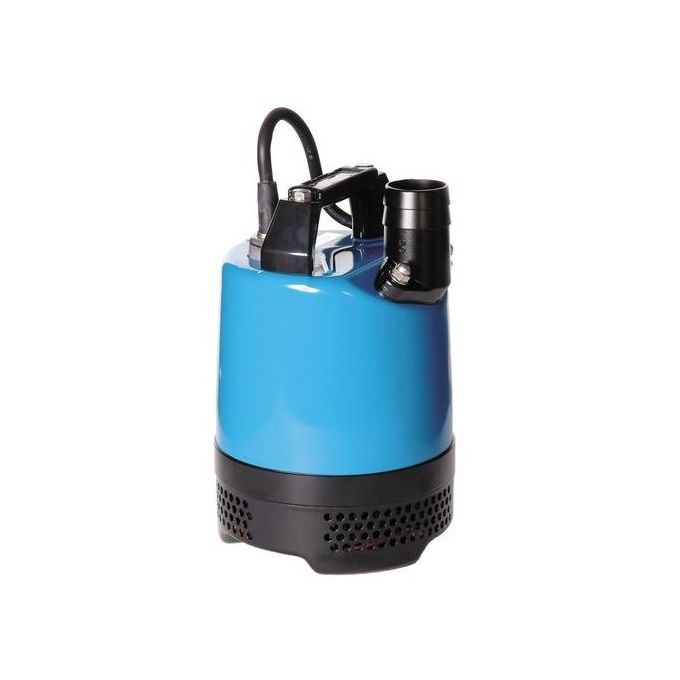

Tsurumi - LB480 Drainage Pump - 110V - Manual

Pump - 10-10-1115 Features:

The LB series is a lightweight and robust range of single-phase contractors' pumps used widely by tool rental companies, utilities and in the construction industry. Considered the "hire industry standard", early models have been used since the 1970's. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position, with rubber and urethane components that give excellent wear resistance in site water Uses that contain sand and silt in suspension. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. On the LB-480 and LB-800 models, the discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a kinked hose.

• Maximum head 17.5m
• Maximum flow 420 lpm
• Manual
• 110V

Manufactured by Tsurumi - pumps, the LB series submersible water pumps are extremely robust, compact contractor pumps, that has a 2 inch (50mm) outlet and a tough pressed steel strainer base and body. A choice of 0.48kW, 0.75KW and 1.5KW motors assist cost effective pump selection. They all offer excellent durability during periods of continuous use and/or operator abuse.

The Tsurumi - LB-480 models incorporate a dual position outlet port, which allows the user to position the outlet hose horizontally or vertically to suit their changing requirements on site and prevent the hose from kinking.

A combination of a rubber pump chamber, rubber wear plate and a urethane vortex impeller provides excellent wear resistance in site water Uses that contain sand and silt in suspension, thus maintaining dynamic performance and reliability in the long term.

The Tsurumi - LB-480 submersible pumps utilise a 403 Stainless Steel shaft that is fitted with an ultra hard-wearing twin mechanical seal (inboard: silicon carbide-silicon carbide) which runs in an oil chamber that has a patented oil lifter to maintain seal lubrication during operation in any position. This feature, combined with the water and air cooling route to the top outlet, allows the pump to operate for extended periods with little or no water.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 225 Ltr/min
• Voltage: 110V
• Maximum head: 11m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
