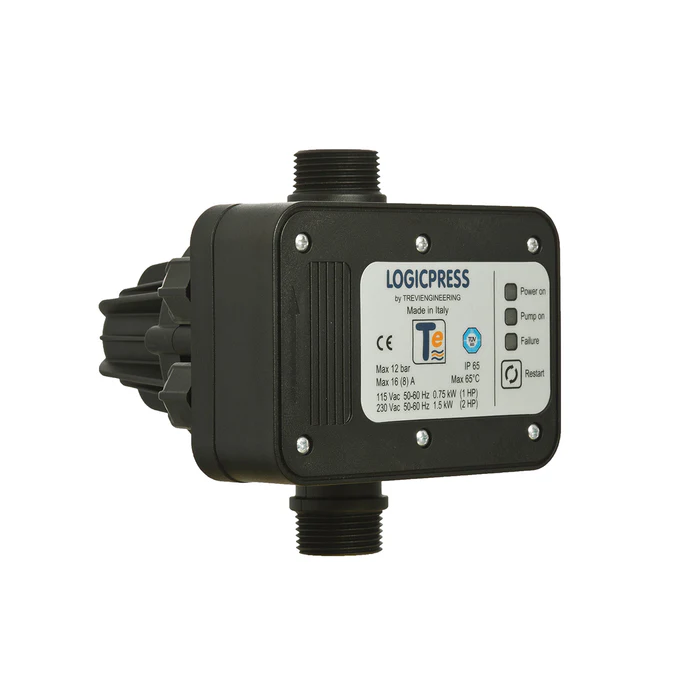

The Tsurumi - LogicPress is an advanced electronic pressure switch designed to control and protect electric pumps in various water systems. This versatile device, available under SKU 20-40-1014, boasts features that enhance Pump - 20-40-1014 dynamic performance, efficiency, and longevity.
Logicis a series of electronic pressure switches that will control and protect an electric pump. They will start a pump immediately when a valve in the pipe system is opened and stop the pump immediately when the valve is closed. They maintain a constant system pressure, protect a pump from dry running and reduce the effects of water hammer. They are fitted with non-return valves and has a simple user interface for system status and re-set. They can be fitted to any surface mounted pump, or in the delivery line of any submersible, that operates within the rated pressure and flow and motor specifications.
Key FeaturesPump Control and Protection
The LogicPress automatically starts the pump when a valve in the pipe system is opened and stops it immediately when the valve is closed. This functionality maintains a constant system pressure and reduces the effects of the water hammer.
Dual Voltage Compatibility
The device can operate at both 110 volts and 230 volts, and it can work with 400 volts three-phase systems when used with a contactor.
Dry Run Protection
The LogicPress incorporates integral dry-running protection, safeguarding the pump from damage caused by operating without water.
User-Friendly Interface
It features pump status LEDs and an external reset switch for easy monitoring and control.
Versatile Installation
The LogicPress can be fitted to any surface-mounted pump or in the delivery line of a submersible pump, provided it operates within the rated pressure, flow, and motor specifications.
Key Product Spec- Inlet/Outlet Size: 1"
- Voltage: 110-230V
- Maximum Motor Power: 0.75KW (110V) / 1.5KW (230V)
- Minimum Flow Requirement: 1 litre per minute
- Maximum Water Column: 15 metres (1.5 bar.) between the switch and the highest outlet
- Protection Rating: IP65
The LogicPress offers a comprehensive solution for pump control and protection, making it ideal for various water supply Uses in residential and commercial settings.
Key Product Features
- Flow rate: 166 Ltr/min
- Voltage: 230V
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
