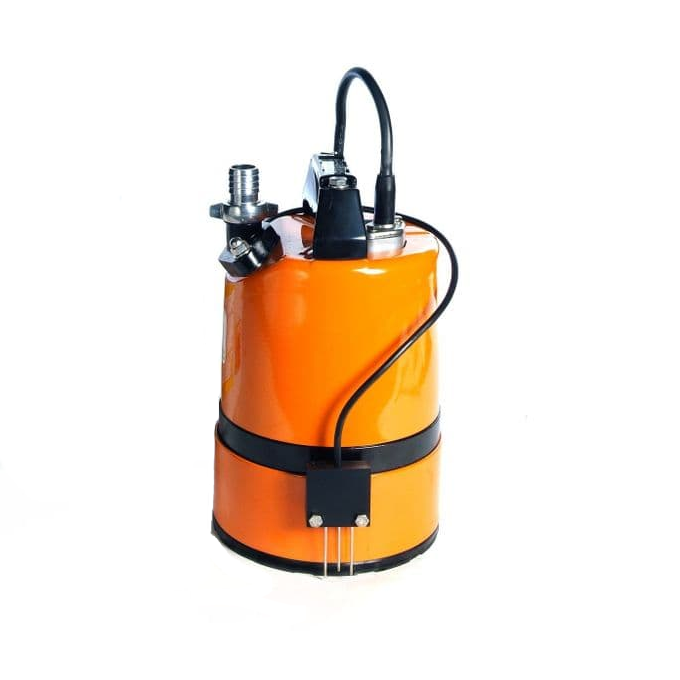

The Tsurumi - LSC1.4S H2O Puddle Pump - 10-10-1252 with Automatic H₂O Sensor Switch is a versatile and efficient submersible pump designed for low-level water drainage Uses. This 110V model, identified by SKU 10-10-1252, offers exceptional dynamic performance and reliability for various industrial and residential uses.
TheLSC range arelightweight and robust single-phase contractors' pump used widely by tool rental companies, utilities, construction companies and in flood defence. It is often referred to as a "puddle sucker", as it can pump water levels down to 1mm. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position, with rubber and urethane components that give excellent wear resistance in site water Uses that contain sand and silt in suspension. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. This discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a kinked hose. An additional feature is an integral check valve which will prevent backflow of water from the discharge hose, retaining priming water for pumping to begin quickly.
Supplied with 10 metres of heavy-duty rubber power cable.
Key Product InformationPumping Capability: The LSC1.4S H2O can pump water down to an impressively low level of just 1mm, making it ideal for removing water from flat surfaces.
Power and dynamic performance:
- Power: 0.48 kW
- Maximum flow rate: 170 litres per minute
- Maximum head: 11 metres
Sizing and Weight Information:
- Size: 221 x 196 x 385 mm (w x l x h)
- Dry weight: 12.05 kg
Outlet Size: 25mm (1 inch)
Automatic Operation: Equipped with the SwitcH₂O system, featuring three 304 Stainless Steel probes (on, off, and common) set in an epoxy-resin filled holder.
Control Panel: Supplied with a Multi 1-P control panel for easy operation and monitoring.
Cable: Includes 10 metres of low-voltage, PVC power cable.
Versatility: Suitable for various Uses, including flood control, construction sites, utilities, and fixed installations.
Durability: Features a pressed steel outer casing and cast aluminium pump stand for increased protection and longevity.
Additional Benefits- Integral swing check valve to prevent backflow of water
- 403 Stainless Steel shaft with ultra hard-wearing twin mechanical seal
- Patented oil chamber with oil lifter for seal lubrication during operation in any position
- Capable of extended operation with little or no water
The Tsurumi - LSC1.4S H2O Puddle Pump combines advanced technology with robust construction, making it an excellent choice for professionals seeking a reliable and efficient water removal solution.
Real-world product applications
- Dewatering areas such as pits, sumps, and low points
- Draining water from site works and excavations
- Removing unwanted water from tanks and containers
- Supporting general drainage and clean-up tasks
- Assisting with temporary water transfer
Key Product Features
- Flow rate: 170 Ltr/min
- Water type: Dirty Water
- Voltage: 110V
- Maximum head: 11m
Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
This item is now obsolete. Please view our alternatives below.
