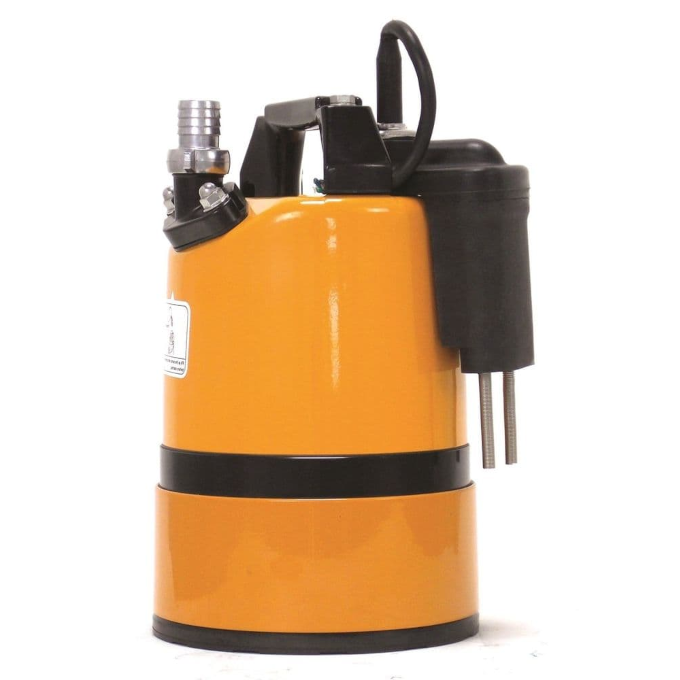

Tsurumi - LSC1.4S Puddle Pump - With Sensor Switch - 110V - 50mm - Automatic

The Tsurumi - LSC1.4S Puddle Pump - 10-10-1057 is a robust and efficient submersible pump designed for effective water removal in various Uses.

TheLSC range arelightweight and robust single-phase contractors' pump used widely by tool rental companies, utilities, construction companies and in flood defence. It is often referred to as a "puddle sucker", as it can pump water levels down to 1mm. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position, with rubber and urethane components that give excellent wear resistance in site water Uses that contain sand and silt in suspension. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. This discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a kinked hose. An additional feature is an integral check valve which will prevent backflow of water from the discharge hose, retaining priming water for pumping to begin quickly.

Supplied with 10 metres of heavy-duty rubber power cable.

• Model: Tsurumi - LSC1.4S
• Part Number: 10-10-1057
• Voltage: 110V
• Power: 0.48 kW
• Flow Rate: 170 litres per minute (L/min)
• Maximum Head: 11 metres
• Minimum Pumping Depth: Capable of pumping down to just 1mm, making it ideal for removing nuisance water from flat surfaces
• Free Passage: 6mm, allowing for the handling of small solids in suspension

• Automatic Sensor Switch: The pump includes an electronic float switch with Stainless Steel probes, encapsulated in impact-resistant rubber, suitable for both portable and fixed installations. The sensor allows for precise level control and can pump down to depths of 85mm or more depending on the sump size
• Durable Construction: The outer casing is made of pressed steel, while the pump stand is constructed from cast aluminium, providing increased protection during rugged handling. The design includes a rubber pump chamber and a urethane vortex impeller, which enhance wear resistance against sand and silt
• Dual Position Outlet Port: This feature allows the user to position the outlet hose either horizontally or vertically, preventing kinks and ensuring flexible operation
• Backflow Prevention: An integral swing check valve is included to prevent water from flowing back into the pump from the discharge hose
• Cooling System: The pump is designed with a water and air cooling route to the top outlet, enabling it to operate for extended periods even with little or no water present

The Tsurumi - LSC1.4S is widely used in:

• Flood control operations
• Construction sites
• Utilities
• Hire fleets
• Domestic Uses for draining flooded areas such as garages and basements

• Weight: Approximately 12 kg
• Cable Length: Supplied with a 10-metre heavy-duty rubber power cable

This pump combines high dynamic performance with durability, making it a reliable choice for various dewatering tasks.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 170 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 110V
• Maximum head: 11m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
