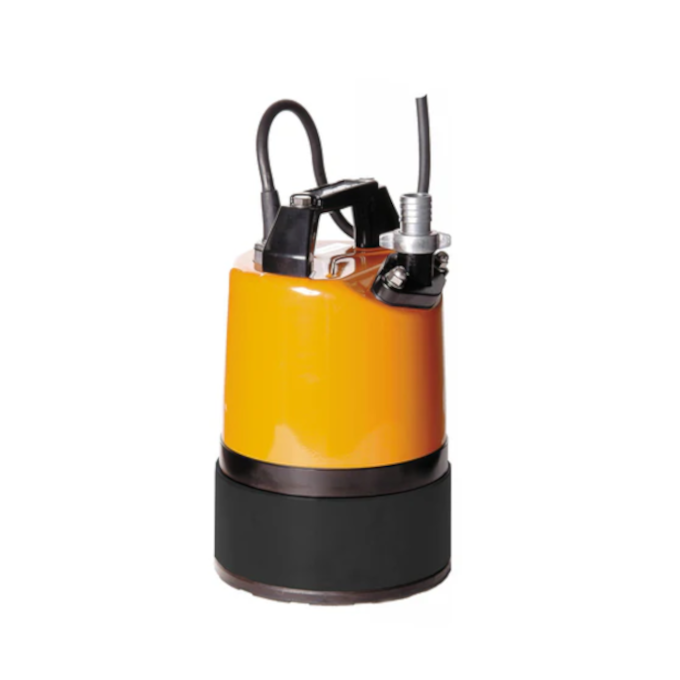

Tsurumi - LSC1.4S Puddle Pump - 230V - Single Phase - 50mm - Manual

The Tsurumi - LSC1.4S Puddle Pump - 10-10-1256 (SKU 10-10-1256) is a high-dynamic performance submersible pump designed for efficient water removal in various Uses. This manual, 230V single-phase model combines powerful capabilities with versatile features, making it an ideal choice for construction sites, flood control operations, and general dewatering tasks.

TheLSC range arelightweight and robust single-phase contractors' pump used widely by tool rental companies, utilities, construction companies and in flood defence. It is often referred to as a "puddle sucker", as it can pump water levels down to 1mm. The hydraulic design features a double mechanical seal, with an oil lifter, for positive seal lubrication in any operating position, with rubber and urethane components that give excellent wear resistance in site water Uses that contain sand and silt in suspension. The top discharge design forms a water and air-cooling channel and this, combined with a high-performance motor, enables long periods of operation in seepage conditions. This discharge can be fixed in horizontal or vertical positions to enable the user to position the outlet in the required direction and prevent obstructions from a kinked hose. An additional feature is an integral check valve which will prevent backflow of water from the discharge hose, retaining priming water for pumping to begin quickly.

Supplied with 10 metres of heavy-duty rubber power cable.

• Model: LSC1.4S
• Voltage: 230V
• Power: 0.48 kW
• Maximum Flow Rate: 170 litres per minute
• Maximum Head: 11 metres
• Outlet Diameter: 50mm (2 inch)
• Dimensions: 196mm diameter x 385mm height
• Dry Weight: 12 kg

• Exceptional Low-Level Pumping: Capable of pumping water down to just 1mm, making it perfect for removing nuisance water from flat surfaces
• Durable Construction: Features a pressed steel outer casing and a cast aluminium pump stand for increased protection during rugged handling
• Wear-Resistant Design: Incorporates a rubber pump chamber and a urethane vortex impeller, enhancing resistance against sand and silt
• Dual Position Outlet Port: Allows for flexible hose positioning, either horizontally or vertically, to prevent kinking
• Backflow Prevention: Equipped with an integral swing check valve to prevent water from flowing back into the pump
• Extended Operation: Designed with a water and air cooling route, enabling operation for long periods even with minimal water present

The Tsurumi - LSC1.4S is widely used in:

• Construction sites
• Flood control operations
• Utilities
• Hire fleets
• Domestic settings (e.g., draining flooded basements or garages)

This versatile pump comes with a 10-metre heavy-duty rubber power cable and is backed by a 3-year manufacturer's guarantee, ensuring reliability and peace of mind for users.

Real-world product applications

• Dewatering areas such as pits, sumps, and low points
• Draining water from site works and excavations
• Removing unwanted water from tanks and containers
• Supporting general drainage and clean-up tasks
• Assisting with temporary water transfer

Key Product Features

• Flow rate: 170 Ltr/min
• Water type: Dirty Water
• Voltage: 230V
• Maximum head: 11m

Tsurumi (est. 1924) is a Japanese manufacturer specialising in heavy-duty submersible pumps for drainage, construction dewatering and wastewater. Product ranges include contractor dewatering, slurry and sewage pumps. Common applications include site dewatering, civil engineering, tunnelling, quarrying and public wastewater projects requiring solids handling.
