Wilo - Star-Z NOVA T Drinking Water Circulator Pump - 230V - Single Phase - 138mm

This circulator is suitable only for drinking water.

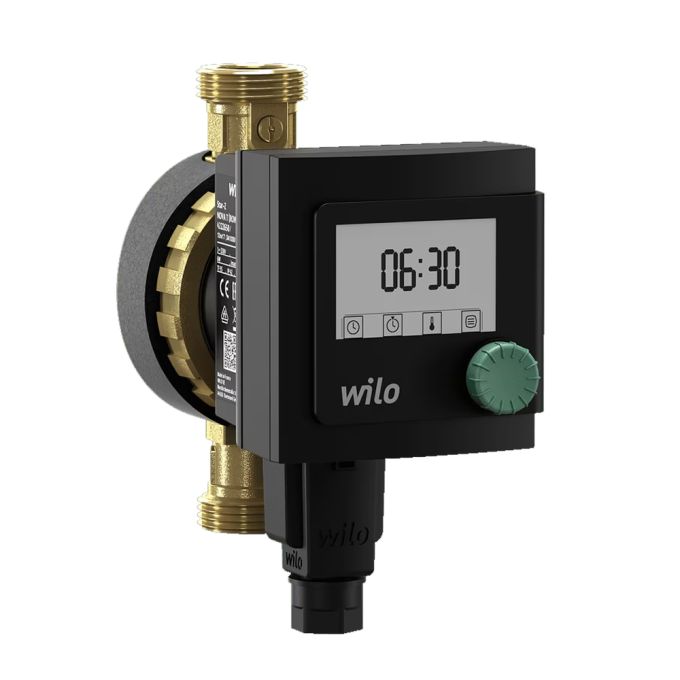

Domestic Hot water-circulator Wilo-Star-Z NOVA T (glandless pump-version) for single-family houses.

Pump for pipe installation, blocking-current proof synchronous motor with high starting torque.

Brass pump housing, Noryl impeller, ceramic shaft.

Power consumption 6 W.

Equipped with thermal insulation shell as standard, housing thread Rp ½.

Pump complete with ball shut-off and non-return valves with G1 thread, built-in time switch, temperature control and a routine for detecting and supporting thermal legionellae switching on the boiler side.

Real-world product applications

• Circulating water around closed-loop pipework systems
• Maintaining flow through distribution circuits
• Supporting recirculation in building services installations
• Keeping consistent flow through equipment or pipe runs
• Assisting with loop circulation for system efficiency

Key Product Features

• Max. fluid temperature: 95 °C
• Min. fluid temperature: 2 °C
• Min. ambient temperature: 2 °C
• Max. ambient temperature: 40 °C
• Temperature range at max. ambient temperature +40 °CT: +2...+65
• Maximum operating pressurePN: 10 bar
• Max. permitted total water hardness: 3.57 mmol/l (20°dH)

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.
