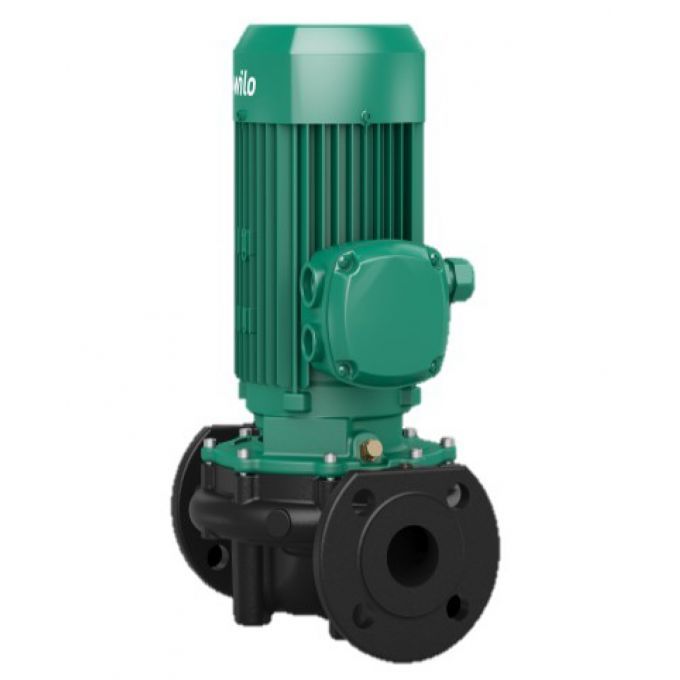

Wilo - VeroLine IPL100/145-1,5/4-IE3 Centrifugal Pump - 400V - Three Phase - 2420 Ltr/min. - 500mm

Name: Wilo - VeroLine IPL100/145-1,5/4-IE3 Centrifugal Pump - 400V - Three Phase - 2420 Ltr/min. - 500mm
Brand: Wilo
SKU: 2121193
Price: 2846.22 GBP
Availability: InStock

Part Number:

2121193

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£4,378.80 RRP £2,846.22 £2,371.85

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Single-stage glanded Centrifugal Pump with compact in line design with directly flanged three-phase motor and one-piece shaft or with lanternn and standard motor rigidly connected by coupling (N version). The IPL series is appropriate for pipe installation or installation on a base. Mounting brackets are available as accessories. With forced-flow circulation, bidirectional bellows mechanical seal and cavitation-reducing plastic impeller.

Flange with R 1/8 pressure measuring connections. Pump housing and lanternn are cataphoretic-coated.

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Operating pressure: 10 Bar.
Flow rate: 2420 Ltr/min
Water type: Clean or Discoloured
Voltage: 400V
Maximum head: 5.7m

Wilo (est. 1872) is a German manufacturer delivering building-services and water-management pumps. Their ranges include circulators, booster sets, drainage pumps and sewage systems. Wilo products are commonly used in heating and cooling circulation, pressure boosting, commercial building services and public water infrastructure.

More Information
Price	£2,371.85
Manufacturer	Wilo
Warranty	1 year guarantee
Bars	10 bar
Electrical supply	400V
AC Power	Three Phase
Flow Rate	2420 Ltr/min
Max Head	5.7m
Water type	Clean or Discoloured
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Inlet Connection	DN 100
Outlet Connection	DN 100
Next Day Delivery	No
Port To Port	500mm
Manufacturers Part Number	2121193
