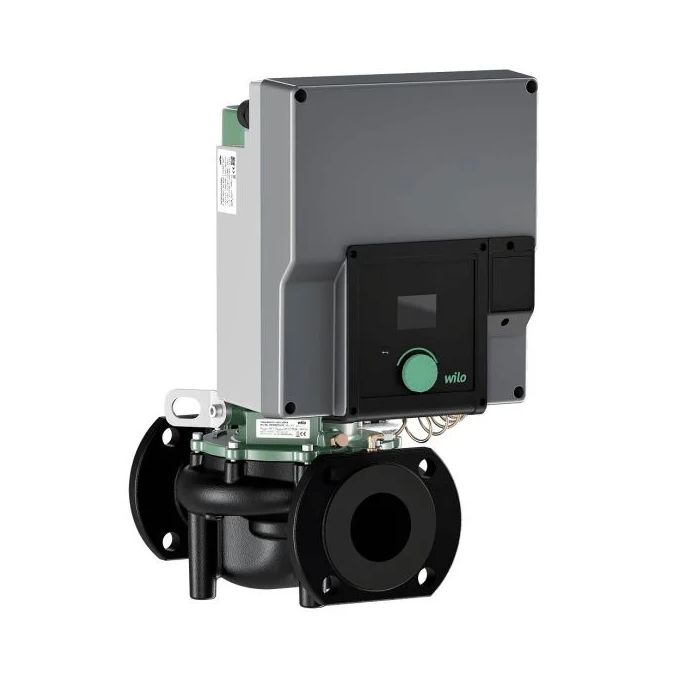

Wilo - Yonos GIGA2.0-I 40/1-10/0,75 - 2204976

Wilo - Yonos GIGA2.0-I 40/1-10/0,75 - 2204976 - WIL-2204976

In-line pump with high energy efficiency with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, hydraulics with minimum efficiency index MEI ≥0.4 and electronic power adjustment in glanded pump design. The pump is configured as a single-stage low-pressure centrifugal pump set with flange connection and mechanical seal.

The Yonos GIGA2.0-Ihas been predominantly designed for fluid conveyance heating water (acc. to VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, air conditioning and cooling systems.

Design:

• Single-stage low-pressure centrifugal pump set with one-piece shaft in monobloc design
• Spiral housing in in-line design (suction and discharge connections with the same flanges in a line)
• PN 16 flange €“ in accordance with EN 1092-2
• Pressure measuring connections (R 1/8) for mounted differential pressure pressure sensor (version ...-R1 without differential pressure pressure sensor)
• Pump volute casing and lantern/motor flange with cataphoretic coating as standard
• Mechanical seal for fluid conveyance water up to Tmax.=+120 °C. A glycol admixture of 20 % to +40 % by volume is permitted up to T ≤+40 °C. An alternative mechanical seal must be provided in water-glycol mixtures with glycol proportions >40 % up to max. 50 % by volume and a fluid temperature of >+40 °C up to max. +120 °C or fluids other than water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
• Connection voltages:
  • 3~440 V ±10 % 50/60 Hz; 3~400 V ±10 % 50/60 Hz; 3~380 V -5 % +10 % 50/60 Hz
  • Version M-: 1~220 V …240 V (±10%), 50/60 Hz
• Compliance with electromagnetic compatibility without additional measures
  • Interference emission for residential environment in compliance with EN 61800-3:2018
  • Interference immunity for industrial environments in compliance with EN 61800-3:2018

Control modes:

• Variable differential pressure (dp-v)
• Constant differential pressure (dp-c)
• Constant speed (n-const.)
• User-defined PIDcontrol

Functions:

• Operating modes of twin-head pump: Main/standby operation,efficiency-optimisedparallel operationfor dp-c and dp-v
• Integrated full motor overload protection

Display in the "Home screen" of the graphic display:

• Control mode currently set
• Current pressure setpoint
• Current actual value
• Current volume flow (only if a differential pressure pressure sensor is connected)
• Current power consumption

Version:

• 1analogue input: 0 ... 10 V, 2 ... 10 V, 0 ... 20 mA, 4 ... 20 mA only for pressure sensor value from differential pressure pressure sensor
• 1analogue input: 0 ... 10 V, 2 ... 10 V, 0 ... 20 mA, 4 ... 20 mA only for external pressure setpoint pressure sensor
• 1digital input(Ext. OFF)
• 2Signal relaysfor run signals and system fault condition messages
• Slot for Wilo-CIF moduleswith interfaces for building automation (BA) (optional accessories: CIF modules Ethernet, Modbus RTU, BACnet MS/TP, LON, PLR, CAN)
• Wilo Netas Wilo system bus for communication during twin-head pump operation
• Automatic emergency operationwith definable pump speed for exceptional circumstances, e.g. bus communication or pressure sensor value malfunction
• Rotatable,graphic colour display(2 inches) with one button manual override mode level
• Integrated dual pump management(twin-head pumps are prewired) when using 2 single pumps as twin-head pump unit (connection via Wilo Net)
• Cable break detectionwhen using an analogue signal (in connection with 2 ... 10 V or 4 ... 20 mA)
• Standard condensate drainage holesin the motor housing (closed upon delivery)
• Air vent valveon the lantern

Scope of delivery:

• Pump
• System installation and operating instructions and declaration of conformity

Accessories must be ordered separately.
