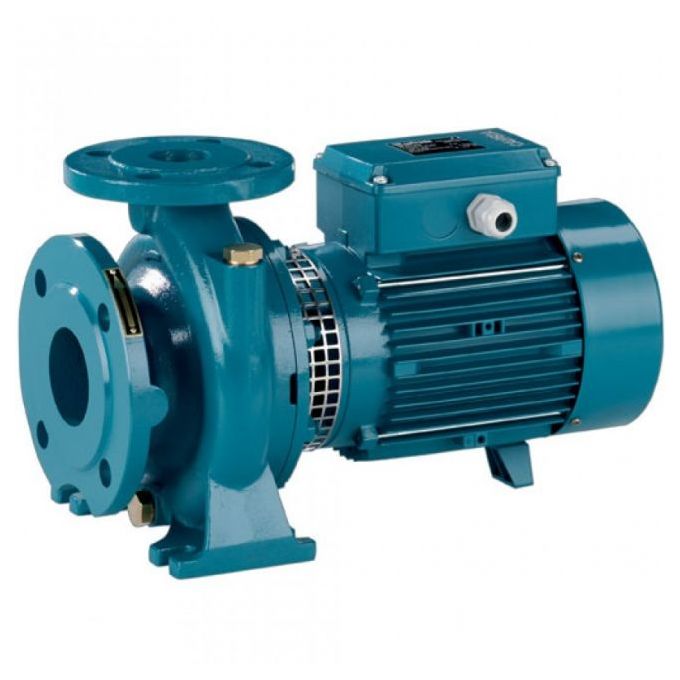

Calpeda - NM 50/12A/B Centrifugal Pump - 4KW - 3 Phase - 415V - 1301 Ltr/min - 24m Head

Name: Calpeda - NM 50/12A/B Centrifugal Pump - 4KW - 3 Phase - 415V - 1301 Ltr/min - 24m Head
Brand: Calpeda
SKU: 60400923000
Price: 1437.29 GBP
Availability: InStock

Part Number:

60400923000

Calpeda NM is a range of close-coupled centrifugal pumps with screwed (threaded) connections.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,437.29 £1,197.74

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Calpeda NM is a range of close-coupled centrifugal pumps with screwed (threaded) connections. The electric motor with extended shaft is directly connected to the pump, creating a compact unit suitable for clean-liquid circulation and general water supply duties.

Typical applications

Clean liquids without abrasives (solids content up to 0.2%)
Water supply
Heating, air-conditioning, cooling and circulation plants
Civil and industrial installations
Irrigation

Operating highlights (range dependent)

Liquid temperature from -10 °C to +90 °C
Total suction lift up to 7 m
Maximum permissible working pressure up to 10 bar (higher for specific NMD models)

NM: Single-impeller configuration
NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
Connections: ISO 228/1 (BS 2779) threaded ports
NM / NMD: Cast Iron pump casing and lanternn bracket
B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

Appropriate applications include: -

- Clean liquids without abrasives, which are non-aggressive for the pump materials ( solids content up to 0.2%).- Water supply.
- Heating, air-conditioning, cooling and circulation plants.
- Civil and industrial applications.- Fire fighting applications.
- Irrigation.

Pump specifications

Liquid temperature from -10 °C to +90 °C.
Ambient temperature up to 40° C.
Total suction lift up to 7 m.

The Calpeda NM 50/12A/B Centrifugal Pump - 4KW - 3 Phase is a Centrifugal Pump item. Voltage for this item is 415V. It has an actual flow rate of 1301 Ltr/min. The maximum head for this pump is 24m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

Flow rate: 1301 Ltr/min
Water type: Clean or Discoloured
Voltage: 415V
Maximum head: 24m

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£1,197.74
Manufacturer	Calpeda
Warranty	1 year guarantee
Electrical supply	415V
AC Power	Three Phase
Flow Rate	1301 Ltr/min
Max Head	24m
Water type	Clean or Discoloured
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Centrifugal Pump
Next Day Delivery	No
Manufacturers Part Number	60400923000
