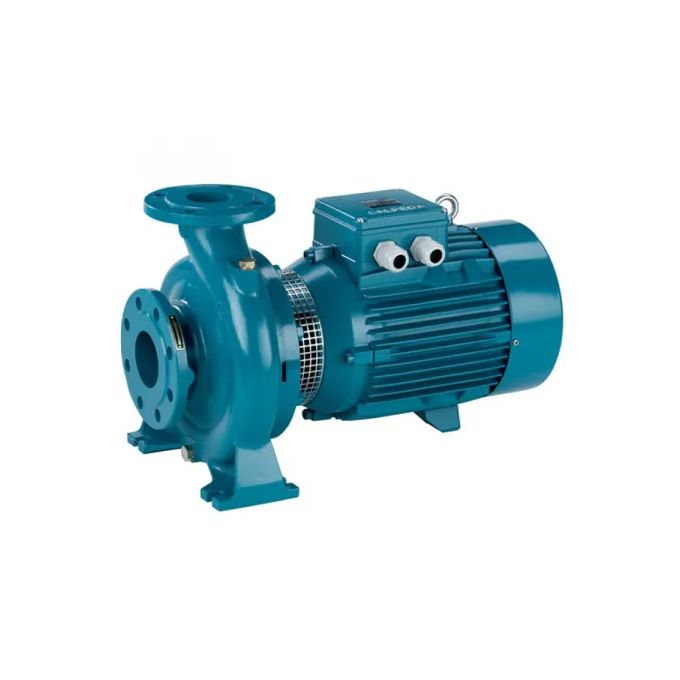

Calpeda - NM32/12DE Close-Coupled Centrifugal Pump - 400V - Three Phase

Name: Calpeda - NM32/12DE Close-Coupled Centrifugal Pump - 400V - Three Phase
Brand: Calpeda
SKU: 60400041000
Price: 682.3 GBP
Availability: InStock

Part Number:

60400041000

NM: Single-impeller configuration NMD: Twin impellers mounted back-to-back, designed to balance axial thrust Connections: ISO 228/1 (BS 2779) threaded ports NM / NMD: Cast Iron pump casing and lanternn bracket B-NM / B-NMD: Bronze pump casing and lanternn

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£682.30 £568.58

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

NM: Single-impeller configuration
NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
Connections: ISO 228/1 (BS 2779) threaded ports
NM / NMD: Cast Iron pump casing and lanternn bracket
B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

The Calpeda NM32/12DE Close-Coupled Centrifugal Pump - 400v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V.

Calpeda's NM / NMS series are close-coupled centrifugal pumps complete with electric motor with extended shaft directly connected to the pump up to 30 kW.

They have a new bracket construction for standard motors (stub-shaft construction) from 37 to 75 KW with integrated thrust bearing.

The pump casing comes with axial suction and radial delivery on top, main dimensions and performance according to EN 733.

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0,2%)
For water supply
For heating, air conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£568.58
Manufacturer	Calpeda
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Water type	Clean or Discoloured
Duty Type	Commercial
Pump Type Filter	Centrifugal Pump
Inlet Connection	50mm
Outlet Connection	32mm
Next Day Delivery	No
Connection Type	Flanged
Manufacturers Part Number	60400041000
