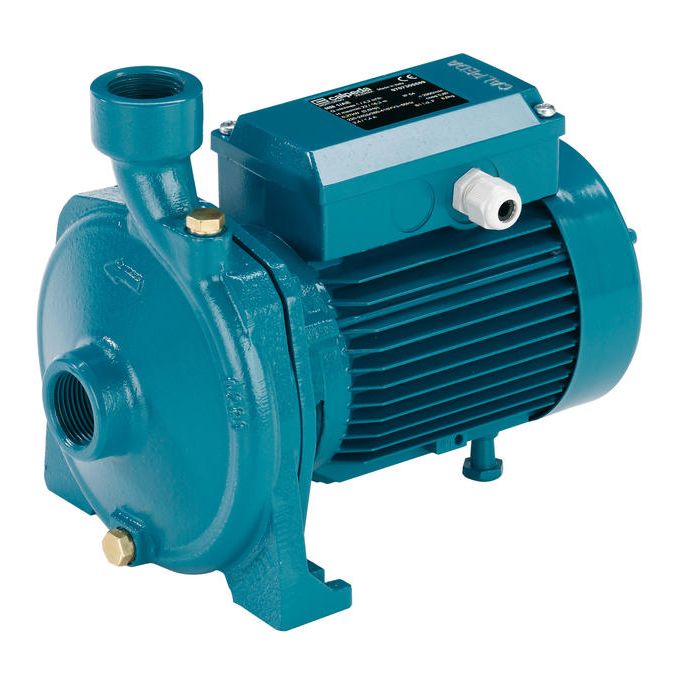

Calpeda - NMD 20/140AE Centrifugal Pump - 400V - Three Phase

Name: Calpeda - NMD 20/140AE Centrifugal Pump - 400V - Three Phase
Brand: Calpeda
SKU: 60200054000
Price: 803.27 GBP
Availability: InStock

Part Number:

60200054000

Calpeda NMD shares the compact close-coupled format of the NM series, but uses two back-to-back impellers to help balance axial thrust.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,071.02 RRP £803.27 £669.39

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Calpeda NMD shares the compact close-coupled format of the NM series, but uses two back-to-back impellers to help balance axial thrust. This makes the NMD range well-suited where higher heads and stable hydraulic loading are required in clean-water services.

Typical applications

Clean liquids without abrasives (solids content up to 0.2%)
Water supply
Heating, air-conditioning, cooling and circulation plants
Civil and industrial installations
Irrigation

Key design notes

Close-coupled construction with motor extended shaft
Double-impeller (back-to-back) hydraulic for axial thrust balancing

NM: Single-impeller configuration
NMD: Twin impellers mounted back-to-back, designed to balance axial thrust
Connections: ISO 228/1 (BS 2779) threaded ports
NM / NMD: Cast Iron pump casing and lanternn bracket
B-NM / B-NMD: Bronze pump casing and lanternn bracket (pumps are delivered fully painted)

The Calpeda NMD 20/140AE Centrifugal Pump - 400v - Three Phase is a Centrifugal Pump item. Voltage for this item is 400V. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Real-world product applications

General water transfer between tanks and systems
Supplying water for domestic or light commercial use
Supporting irrigation and washdown duties
Circulating or transferring water in utility applications
Assisting with general pumping and transfer tasks

Key Product Features

For clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
For water supply
For heating, air-conditioning, cooling and circulation plants
For civil and industrial applications
For fire fighting applications
For irrigation

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£669.39
Manufacturer	Calpeda
Warranty	1 year guarantee
Electrical supply	400V
AC Power	Three Phase
Water type	Clean or Discoloured
Pump Type Filter	Centrifugal Pump
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Inlet Connection	1 1/4"
Outlet Connection	1"
Next Day Delivery	No
Manufacturers Part Number	60200054000
