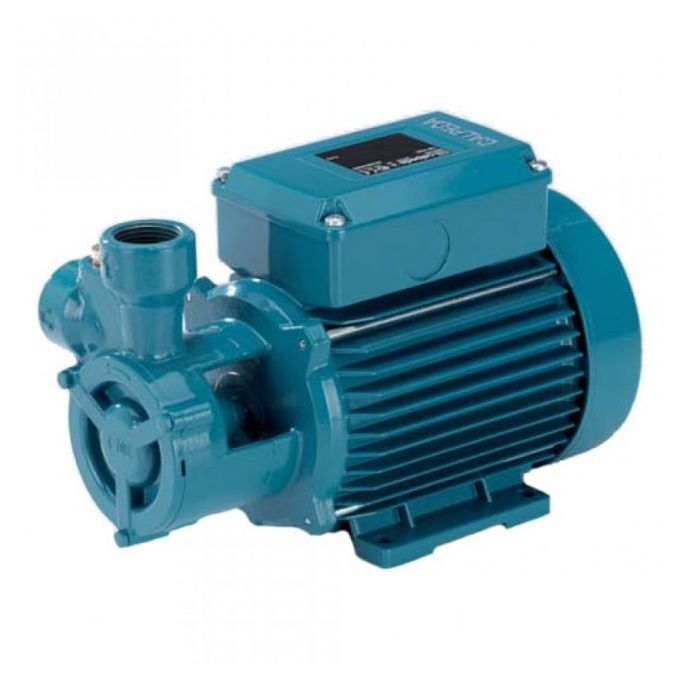

Calpeda - TM 61E Peripheral Pump 240V - 38m Head

Name: Calpeda - TM 61E Peripheral Pump 240V - 38m Head
Brand: Calpeda
SKU: 70130021000
Price: 224.2 GBP
Availability: InStock

Part Number:

70130021000

Appropriate for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£298.92 RRP £224.20 £186.83

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Appropriate for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

Calpeda TM is the single-phase variant within the T/TP peripheral close-coupled electropump family. TM pumps are designed for clean liquids without abrasives or suspended solids and are commonly used where compact size and pressure increase are required.

Typical applications

Clean liquids without abrasives or suspended solids
Increasing network pressure (in accordance with local regulations)
Cooling and air-conditioning equipment and circulation duties

Key features (range dependent)

Single-phase 230 V motor with thermal protector
Compact close-coupled peripheral pump construction

The Calpeda TM 61E Peripheral Pump 240v is a Peripheral Pump item. Voltage for this item is 240V. It has an actual flow rate of 40 Ltr/min. The maximum head for this pump is 38m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features

Flow rate: 40 Ltr/min
Water type: Clean or Discoloured
Voltage: 240V
Maximum head: 38m

Calpeda pumps cover a wide mix of water-moving applications, from everyday clean-water transfer through to drainage, wastewater handling, swimming pool water circulation and packaged system solutions. They are an long-standing Italian manufacturer of pumping systems, established in 1959, with product ranges used across domestic, commercial and industrial applications.

More Information
Price	£186.83
Manufacturer	Calpeda
Warranty	1 year guarantee
Dimensions	160mm High x 122mm Wide x 244mm Deep
Electrical supply	240V
AC Power	Single Phase
Flow Rate	40 Ltr/min
Max Head	38m
Water type	Clean or Discoloured
Switch	None
Duty Type	Commercial
Submersible vs Surface Mounted	Surface Mounted
Pump Type Filter	Peripheral Pump
Next Day Delivery	No
Manufacturers Part Number	70130021000
