Product Applications
Automatic water lifting sets, particularly appropriate for domestic use, small installations for civil, industrial and agricultural use, washing systems and hobbies.
These are characterised by the use of JET self-priming electropumps which can operate even when there is air, gas and small quantities of sand in the water.

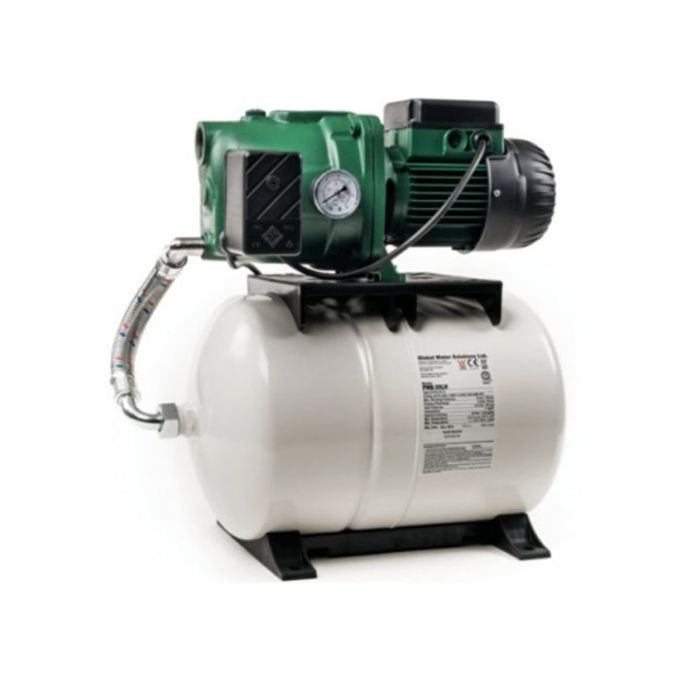

The set is composed of a diaphragm tank with capacity 20 litres, pressure switch for automatic operation, pressure gauge, JET electropump complete with power cable and plug, kit for coupling the pump and the tank, all assembled and ready for installation.
Construction Includes Of The Pump
Die-cast aluminium pump body and motor support. Technopolymer impeller, diffuser, Venturi tube and sand guard. Stainless Steel pressure discs. Carbon/ceramic mechanical seal.
Construction Features Of The Motor
Induction motor, closed and cooled with external ventilation. Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life. Built-in thermal and current overload protection and a capacitor permanently in circuit. Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41). Motor protection: IP44 Terminal box protection: IP55 Insulation class: F
Construction Features Of The Tank
Horizontal type, capacity 20 litres, with butyl diaphragm, complete with feet on the bottom and brackets for fixing the pump on top.
The DAB AQUAJET 82 M-G Booster Set - 240v - Single Phase - 90 Ltr/min. is a Booster Set item. Voltage for this item is 240V. It has an actual flow rate of 90 Ltr/min. The maximum head for this pump is 61m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.
Key Product Features and Use
- Flow rate: 90 Ltr/min
- Water type: Clean or Discoloured
- Voltage: 240V
- Maximum head: 61m
Real-world product applications
- Boosting water pressure to multiple outlets in a building
- Maintaining stable pressure where demand varies
- Supplying water from storage tanks to distribution pipework
- Supporting general water supply and transfer systems
- Assisting with pressure control in utility installations
DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.
This item is now obsolete. Please view our alternatives below.
