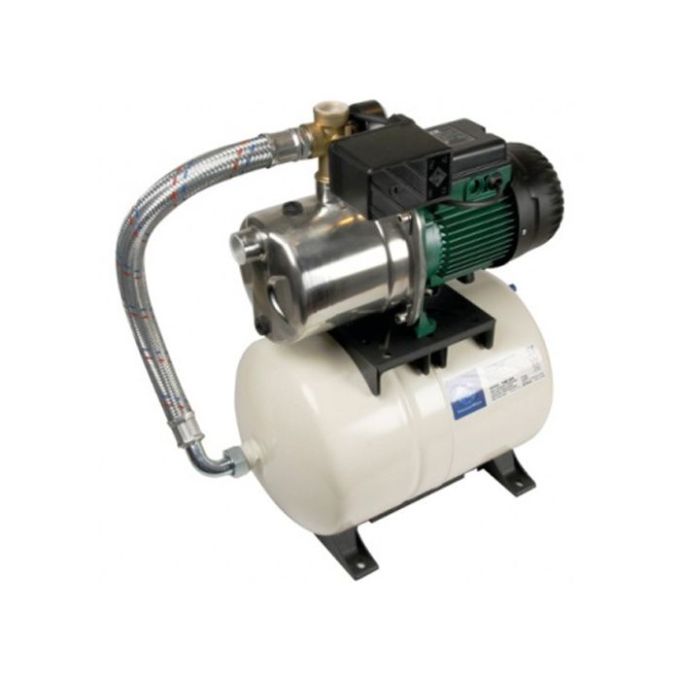

DAB - AQUAJET INOX - 82 M-G Booster Set - 240V - Single Phase - 90 Ltr/min - 61m Head

The DAB AQUAJET Inox 82 M-G Booster Set is an automatic water lifting set, Particularly appropriate for domestic use, small installations for civil, industrial and agricultural use, washing systems and hobbies.

Construction Includes Of The Pump

Die-cast aluminium pump body and motor support.
Technopolymer impeller, diffuser, Venturi tube and sand guard.
Stainless Steel pressure discs.
Carbon/ceramic mechanical seal.

Construction Features Of The Motor

Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit.
Manufactured according to CEI 2-3 and CEI 61-69 standards (EN 60335-2-41).
Motor protection: IP44
Terminal box protection: IP55
Insulation class: F

- Operating range: from 0.6 to 5.4 m3/h with head up to 61 metres

- Liquid quality requirements: clean, free from solids or abrasive substances, non viscous, non aggressive, non crystallized, chemically
neutral, close to the characteristics of water.

- Liquid temperature range: from 0°C to +35°C for domestic use (EN 60335-2-41)
from 0°C to +40°C for other uses

- Maximum suction depth: 8 metres

- Maximum ambient temperature: +40°C

- Maximum operating pressure: 8 Bar. (800 kPa)

- Installation: fixed or portable in a horizontal position

- Special executions on request: other voltages and/or frequencies

The DAB AQUAJET Inox 82 M-G Booster Set - 240v - Single Phase - 90 Ltr/min. is a Booster Set item. Voltage for this item is 240V. It has an actual flow rate of 90 Ltr/min. The maximum head for this pump is 61m. This is a Surface Mounted pump which can be suitable when the pump can sit in a dry, accessible location and draw liquid in via a suction pipe or hose.

Key Product Features and Use

• Flow rate: 90 Ltr/min
• Water type: Clean or Discoloured
• Voltage: 240V
• Maximum head: 61m

Real-world product applications

• Boosting water pressure to multiple outlets in a building
• Maintaining stable pressure where demand varies
• Supplying water from storage tanks to distribution pipework
• Supporting general water supply and transfer systems
• Assisting with pressure control in utility installations
