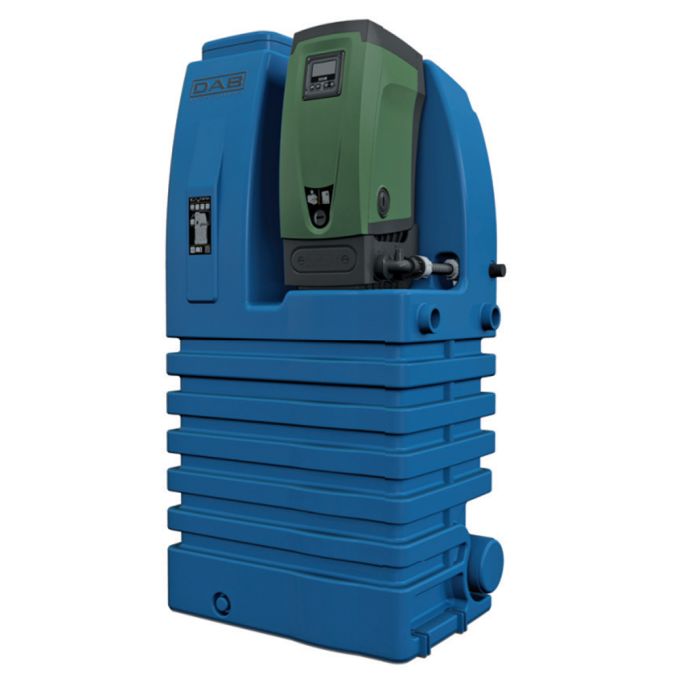

DAB - ESYBOX And ESYTANK Mains Booster Set - 500 Ltr Tank Capacity - 120 Ltr/min - Single Phase - 230V

The ESYTANK & ESYBOX combined create a complete pressure boosting system with high-efficiency allowing for:

Construction Charecteristics:

The DAB ESYTANK has a maximum water capacity of 480 litres, Appropriate for use with drinking water.

Mains water in-let valve for filling from the water mains with integrated float and free discharge in compliance with UNI EN 1717. Overflow connection system type AG as per the same standard (UNI EN 1717 "Protection against pollution of potable water″).
The tank is supplied complete with ESYDOCK, a suction pipe with foot valve, and a delivery pipe.
The tank is
On the front wall there is the possibility of connecting a plug or a discharge pipe with a pipe that can be welded or glued on.
On the rear, at the bottom, there is access to a possible direct drain under the tank.
Both auxiliary discharge points can be drilled as required.
System maintenance is also simple thanks to the handy inspection lid. ESYTANK has a modular design giving the possibility of installing additional tanks on
three different sides (at the side and rear).
Nothing else is needed, ESYTANK in combination ESYBOX to guarantee the correct connection, installation and operation in residential and light commercial
applications.

The DAB ESYBOX And ESYTANK Mains Booster Set - 500 Litre Tank Capacity - 120 Ltr/min - Single Phase is a Booster Set item. Voltage for this item is 230V. It has an actual flow rate of 120 Ltr/min. This being

Basement or cellar sump pit drainage; Industrial and civil liquid transfer applications; Water pressure boosting for household, commercial or irrigation systems; Transferring water between tanks, cisterns, or IBC containers and more, please get in touch for product support.

• Catering for the water requirement, if the public distribution main is insufficient
• Compliance with civil water regulations where pumping systems cannot draw directly from the distribution mains. Avoiding the reflux and possible contamination of water back into the distribution mains
• Use as an intermediate tank in tall buildings dividing pressure boosting into several areas

• Notable reduction of space required
• Dimensions appropriate for passing through cellar door ways
• Tank supplied complete with all accessories for rapid installation
• Full integrated and simple installation of ESYBOX
• Recyclable Materials
• Tank suitable for potable water
