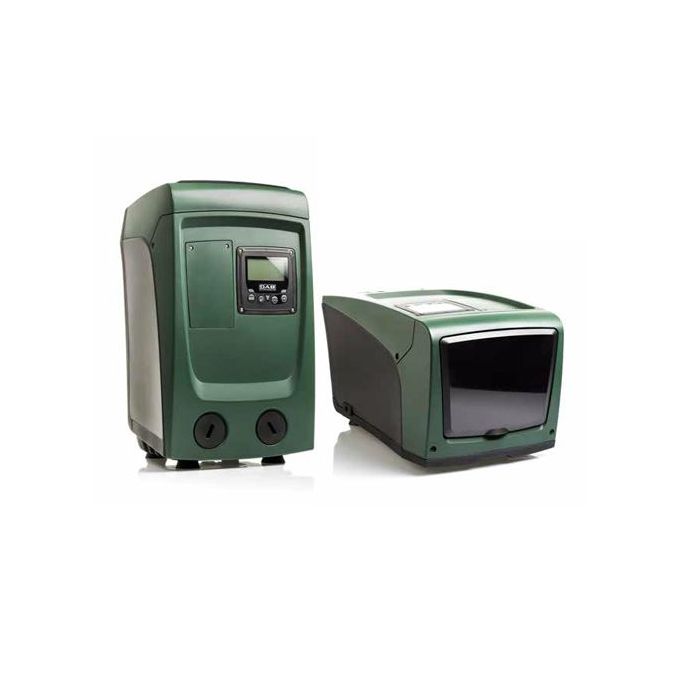

DAB - ESYBOX Electronic Water Pressure System - Mini Version - 80 Ltr/min - 50m Head

Name: DAB - ESYBOX Electronic Water Pressure System - Mini Version - 80 Ltr/min - 50m Head
Brand: Dab
SKU: 60212601 / 60183504
Price: 479.4 GBP
Availability: InStock

Part Number:

60212601 / 60183504

TECHNICAL DATA Operating range: capacity up to 80 l/min; head up to 50 m Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

View Description | Data Sheet(s)

This item is now obsolete. Please view our alternatives below.

£1,013.38 RRP £479.40 £399.50

In stock

Free Standard Delivery

Add to Wishlist

Compare

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

TECHNICAL DATA

Operating range: capacity up to 80 l/min; head up to 50 m

Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

Liquid temperature range: from 0°C to +35°C for domestic use for other use: from 0°C to +40°C

Maximum suction depth: 8 meters

Maximum ambient temperature: +50°C

Maximum operating pressure: 7,5 Bar. (750 kPa)

Motor protection rating: IPX4

Insulation class: F

Installation: Horizontal or vertical fixed position

APPLICATIONS

ESYBOX mini is the DAB compact automatic pressurisation system for the water supply of a single dwelling. ESYBOX mini guarantees the comfort of constant pressure (Pressure Set Point adjustable from 1 up to 5 Bar.) inside the system, and energy savings thanks to the inverter technology. Appropriate for use with drinking water, in domestic systems, and in gardening applications. ESYBOX mini does not require any additional components for its installation.

The DAB ESYBOX Electronic Water Pressure System - Mini Version is a Pressure System item. It has an actual flow rate of 80 Ltr/min. The maximum head for this pump is 50m.

The operating pressure of this is 5 Bar.

Key Product Features and Use

Operating pressure: 5 Bar.
Flow rate: 80 Ltr/min
Maximum head: 50m

DAB Pumps is an Italian water-pump manufacturer founded in 1975. They produce reliable products, technically advanced, easy to install and efficient, ensuring high energy savings in heating and air conditioning, water supply and pressurisation, irrigation and gardening, use of rain water, draining, collection and disposal of waste water, circulation and filtration of swimming pool water. All our DAB products, including spare parts, are guaranteed against construction material and processing defects for a period of 1 year from purchase, terms apply.

More Information
Price	£399.50
Manufacturer	Dab
Warranty	1 year guarantee
Dimensions	D300mm x W500mm x H320mm
Bars	5 bar
Flow Rate	80 Ltr/min
Max Head	50m
Pump Type Filter	Pressurisation Unit
Switch	None
Duty Type	Domestic
Next Day Delivery	Yes
Manufacturers Part Number	60212601
